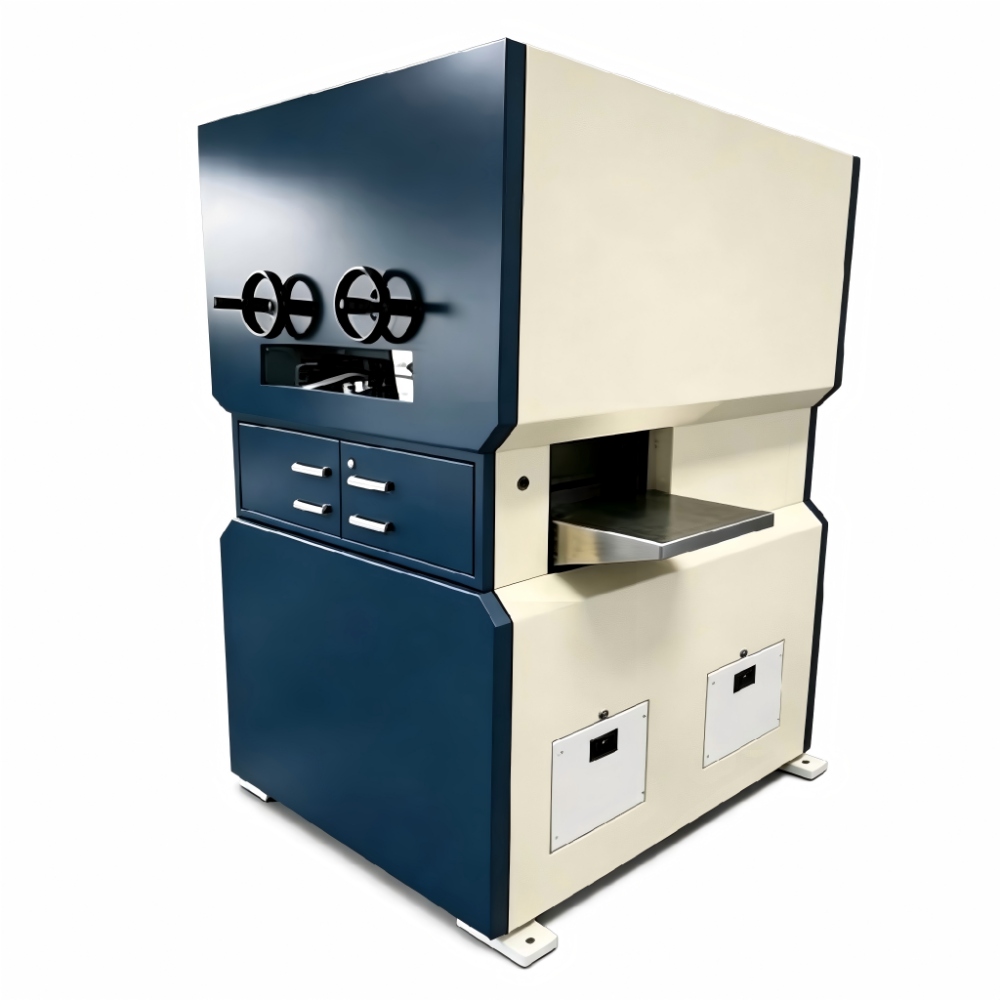

Unlevel parts cause severe downstream bottlenecks in sheet metal processing. Internal material stress, waves, and warping compound rapidly across the shop floor. You lose valuable production hours trying to correct these defects manually. Traditional flattening often requires operators to spend 10 or more minutes per part on a press brake, shimming dies and guessing at the required over-bend. This outdated method fails to meet the strict flatness tolerances demanded by modern automated laser cutting and robotic welding systems. To eliminate bowing and reduce internal stress permanently, fabrication shops rely on a manual leveling machine. This standardized, mechanical solution prepares both sheet metal and heavy plate parts for high-precision fabrication. It replaces operator guesswork with repeatable mechanical yielding, ensuring your raw materials lay dead flat before they ever reach the next processing cell.
Process Efficiency: Roller leveling reduces part flattening time from 10+ minutes to less than a minute compared to press brake methods, directly impacting labor costs and throughput.
Downstream Quality: Removing internal stress prevents material distortion during thermal cutting and welding, reducing scrap rates and eliminating laser head crash risks.
Configuration Dependency: Successful implementation requires matching roller diameter (e.g., 30mm, 40mm, 50mm) strictly to the material yield strength and maximum thickness limits.
Application Versatility: Manual levelers handle a wide spectrum of materials, from structural mild steel plates to delicate decorative metals and thin foils.
Raw sheet metal inherently contains internal stress from the mill rolling process. When a laser or plasma cutter slices through this material, the stress releases instantly. The metal reacts by springing back, twisting, or bowing upward. This movement creates a dangerous environment for automated equipment. An upturned edge can easily collide with a fast-moving laser head. Such collisions destroy expensive nozzles, damage optics, and halt production lines entirely. Pre-existing waves in raw sheets also cause focal length variations during cutting. This leads to heavy dross, poor edge quality, and parts that require secondary grinding.
Welding operations suffer equally from unlevel parts. Robotic welding cells require absolute consistency in joint fit-up. If a part bows even slightly, the weld seam deviates from the programmed path. This gap inconsistency forces operators to intervene manually. They must use clamps, heavy fixtures, or tack welds to force the parts together. This manual intervention defeats the purpose of automated welding. Distortion introduced by unlevel parts compromises the structural integrity of the final weldment and increases the rejection rate at quality control.
Laser Head Collisions: Upturned edges from stress release strike the cutting head, causing thousands of dollars in damage and extended downtime.
Focal Length Variations: Wavy material changes the distance to the laser nozzle, resulting in dross accumulation and jagged cuts.
Robotic Welding Failures: Bowed parts create inconsistent gaps, causing automated welders to miss the joint entirely or create weak welds.
Manual Rework: Operators waste time hammering or clamping parts to force a proper fit-up before assembly.
Fabricators historically relied on press brakes to flatten warped parts. This approach drains labor resources heavily. An operator must place the bowed part over a V-die, apply pressure, check the flatness with a straight edge, and repeat the process. They often shim the dies or flip the part multiple times. Flattening a single complex part can easily consume 10 to 15 minutes. When you multiply this time across hundreds of parts, the labor waste becomes a massive operational burden. The 10-minute press brake method simply cannot compete with the under-one-minute cycle time of a roller leveler.
Press brake leveling lacks repeatability. It relies entirely on the feel and experience of a veteran operator. Single-point pressure methods only address localized bowing. They do not relieve the global internal stress trapped within the material lattice. If another operator attempts the same job, the results will vary wildly. This inconsistency makes it impossible to standardize production times or guarantee part quality for downstream assembly.
Leveling raw sheets before processing ensures a stable foundation for all subsequent operations. Pre-process leveling flattens the master sheet so it sits perfectly flush on the punch press or shear table. When shearing unlevel sheets, the blade pushes the bow into the table, causing the material to shift. This results in out-of-square blanks. Pre-leveling eliminates this shift. It prevents material movement during aggressive punching cycles and ensures accurate blank dimensions. It also maximizes material utilization, as operators can nest parts closer to the edges of a truly flat sheet.
Post-process leveling addresses the defects introduced during fabrication. Thermal cutting methods like laser, plasma, and oxy-fuel inject massive amounts of heat into the material. This heat creates localized expansion and contraction, resulting in micro-warping and edge distortion. Running these cut parts through a leveling machine neutralizes the thermal stress. It restores the parts to a perfectly flat state, making them ready for precision bending or automated welding without further manual correction.
Manufacturing electrical enclosures, medical cabinets, and precision chassis requires exact bend angles. You cannot achieve a perfect 90-degree bend on a press brake if the flat blank is already bowed. The bow alters the material's engagement with the tooling, leading to over-bending or under-bending. Press brake operators rely on consistent material behavior to hit tight tolerances. If a blank has trapped internal stress, it will spring back unpredictably after bending. One part might spring back 2 degrees, while the next springs back 4 degrees. Levelers prepare aluminum, stainless steel, and mild steel blanks by removing this initial distortion. Every part behaves identically in the press brake, allowing operators to lock in their ram depth and run production without constant angle checks.
Architectural panels, elevator interiors, and decorative facades demand visual perfection. Any surface wave or oil-can effect becomes highly visible once the metal receives a polished or reflective finish. Precision leveling plays a direct role in achieving this flawless appearance. The alternating bending process stretches the material fibers uniformly, eliminating visual distortions. To process these cosmetic parts without marring the surface, machines utilize specialized configurations. Operators select machines with coated, polished rollers and strict cleanliness protocols to ensure the decorative finish remains pristine throughout the flattening process.
Highly sensitive materials like copper foil, battery electrodes, and aerospace aluminum require extreme care. Standard heavy-duty levelers will crush or tear these delicate substrates. You must use a specialized manual sheet straightener for thin foil to handle these applications. These machines feature tightly spaced, small-diameter rollers designed to induce plastic deformation in very thin gauges.
Processing foil demands precise tension and pressure control mechanisms. If the tension is too high, the foil stretches and loses its dimensional tolerance. If the pressure is uneven, the material wrinkles or tears. The straightener must apply uniform, micro-adjustable pressure across the entire width of the web. The rollers themselves are precision-ground to exceptional smoothness to prevent transferring any surface defects or marring the delicate foil surface.
Feature | Standard Sheet Leveling | Thin Foil Straightening |
|---|---|---|
Roller Diameter | Large (40mm - 50mm) | Very Small (Under 20mm) |
Roller Spacing | Wide pitch | Extremely tight pitch |
Tension Control | Minimal tension required | Strict micro-tension control |
Surface Finish | Standard ground steel | Highly polished, defect-free |

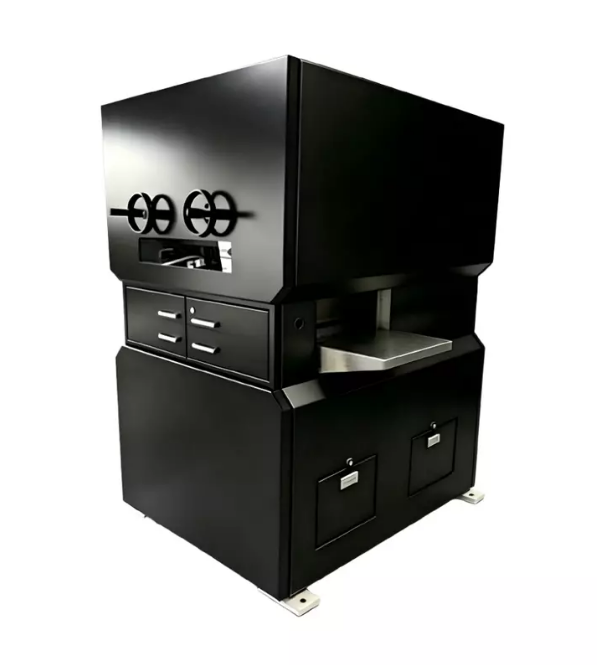

Roller diameter dictates a machine's ability to process specific material thicknesses. A 30mm roll manual leveling machine provides the tight bend radius necessary to yield thin-gauge sheet metal. To relieve internal stress, the material must be bent past its yield point. Thin materials require a sharp, aggressive bend to reach this threshold. When processing 20-gauge stainless steel, the 30mm rollers create a steep entry angle. This steep angle forces the outer fibers of the metal to stretch beyond their elastic limit. If you used larger rollers on this same 20-gauge sheet, the material would simply ride over the curve without yielding, leaving the internal stress completely intact.
This configuration excels in processing precision electronics components, aerospace shims, and delicate alloys. The small diameter limits the machine's maximum capacity. If you attempt to process thick plates through 30mm rollers, the structural integrity of the rolls will fail. They will deflect under the heavy load, resulting in unlevel parts and permanent damage to the machine's internal bearings.
For general fabrication shops handling a mix of materials, the 40mm roll manual leveling machine serves as a versatile mid-range option. It bridges the gap between delicate sheet metal and structural plate. The 40mm diameter offers enough penetration to effectively yield medium-gauge mild steel and aluminum. A typical job shop might run 1/8-inch aluminum brackets in the morning and 10-gauge mild steel chassis components in the afternoon. The 40mm setup handles this transition seamlessly.
Operators simply adjust the entry and exit gap dials to accommodate the different yield strengths. The robust backup bearings supporting the 40mm rollers prevent deflection when pushing the upper limits of its capacity on mild steel. Shops that process a wide variety of brackets, chassis components, and standard enclosures find the 40mm setup ideal. It handles the majority of daily production needs without requiring multiple specialized machines on the floor.

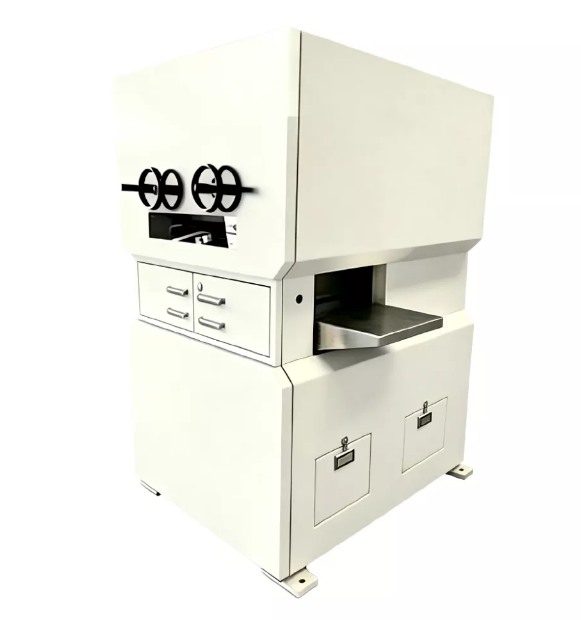

Heavy fabrication requires robust equipment. A 50mm roll manual leveling machine provides the structural necessity for processing thicker plate parts and high-yield-strength materials like AR400 or thick stainless steel. Processing 1/2-inch A36 steel plate requires immense downward force. The 50mm rollers, supported by massive steel frames and heavy-duty drive shafts, deliver this force without bowing. When heavy plate contains severe edge wave or center buckle from the steel mill, the 50mm configuration aggressively kneads the material. It forces the shorter material fibers to stretch, equalizing the tension across the entire plate width.
The trade-off for this heavy-duty capacity is a loss of effectiveness on thin materials. The 50mm rollers cannot create a bend radius tight enough to push thin-gauge sheets past their yield point. The thin material will simply flex over the large rollers and spring back to its original warped shape. You must strictly align the 50mm configuration with heavy plate applications to achieve successful stress relief.
The core physics of roller leveling rely on an alternating bending process. As the material enters the machine, the first set of rollers applies a deep plunge, bending the metal sharply past its yield point. This initial plastic deformation shatters the internal stress lattice. As the material travels through the subsequent rollers, the bend radius gradually decreases. The final rollers perform micro-bends, returning the material to a perfectly flat state. This continuous process effectively neutralizes internal stress and eliminates waves, bends, and bowing.
Manual adjustment mechanisms allow operators to dial in the exact plunge depth required for different batches. While fully CNC-controlled levelers offer automated setups, a manually adjusted machine can achieve identical flatness tolerances in the hands of a trained operator. The mechanical action of the rollers remains the same. The key to achieving strict tolerances lies in understanding the material's behavior and making precise adjustments to the entry and exit gaps.
Evaluating machine capacity requires a clear understanding of material yield strength. You cannot treat soft aluminum and high-tensile stainless steel equally. A machine rated for 1/4-inch mild steel may only be capable of processing 1/8-inch stainless steel due to the higher force required to yield the harder material. Pushing a machine beyond its yield strength limits will cause catastrophic roller deflection and drive system failure.
You must calculate maximum thickness limits based on the specific yield strength of your most demanding material. Manufacturers provide capacity charts detailing these limits. Always reference the material's tensile properties before feeding it into the machine. Processing high-strength alloys requires larger roller diameters and heavier frame construction to withstand the heavy counter-forces generated during plastic deformation.
Floor space remains a premium commodity in any fabrication shop. Manual levelers generally feature a compact footprint compared to massive automated stamping lines. Assess how the machine integrates into your existing shop layout. Ideally, position the leveler near the laser cutting cells or punch presses to minimize material handling and forklift traffic.
Evaluate the manual adjustment mechanisms for operator ergonomics. High-quality machines utilize precision handwheels, clearly marked dial indicators, and smooth gear reductions. These features allow operators to set roller gaps quickly and accurately without excessive physical strain. The time required to switch between material batches depends heavily on the clarity of these indicators and the operator's ability to reference documented setup charts.
Comparing capital expenditure reveals stark differences between manual and fully automated CNC precision levelers. Automated machines require massive upfront investments, complex software integration, and specialized maintenance. They excel in continuous stamping lines where material thickness never changes for weeks at a time. For many fabrication environments, this level of automation represents overkill.
Manual machines make perfect financial sense in high-mix, low-volume production environments. Job shops, prototyping facilities, and secondary operation cells benefit immensely from the lower capital expenditure. The manual adjustments provide the flexibility needed to switch from 16-gauge aluminum to 1/4-inch steel plate within minutes. The ROI accelerates quickly when the machine's flexibility matches the shop's diverse daily workflow.
Calculating ROI requires analyzing the hours saved on part flattening and the reduction in scrap rates. When you transition from a 10-minute press brake operation to a 30-second roller pass, the labor savings compound daily. Eliminating laser head crashes and welding fit-up errors directly reduces material waste and rework costs.
Production Metric | Traditional Press Brake Flattening | Manual Roller Leveling |
|---|---|---|
Time Per Part | 10 to 15 minutes | Under 1 minute |
Labor Dependency | High (Requires veteran operator feel) | Low (Standardized dial settings) |
Stress Relief | Localized only (Internal stress remains) | Global (Neutralizes internal lattice stress) |
Repeatability | Poor (Varies by operator) | Excellent (Consistent mechanical action) |
Downstream Defect Risk | High (Spring-back during welding) | Eliminated (Parts remain dead flat) |
Transitioning to roller leveling introduces a specific learning curve. Operators must learn how to manually set roller gaps and understand the concept of penetration depth. They need to visualize how the material bends past its yield point at the entry rollers and flattens at the exit rollers. Training should focus on reading dial indicators accurately and making incremental adjustments based on the material's exit condition.
To ensure repeatability, implement strict standard operating procedures. Operators should document the exact dial settings for every recurring job. Create a setup matrix that lists material type, thickness, entry gap, and exit gap. When a job returns to the floor, the operator simply references the matrix, dials in the settings, and begins processing immediately. This documentation eliminates trial and error and standardizes part quality across different shifts.
Consistent performance relies on rigorous maintenance protocols. The rollers endure immense pressure and friction daily. You must clean the rollers regularly to prevent surface contamination and premature wear. Dust, mill scale, and laser slag can accumulate on the rollers, acting as an abrasive that degrades the precision-ground finish.
Cross-contamination presents a significant risk in mixed-material shops. If you run carbon steel plates and immediately follow with stainless steel cosmetic parts, the rollers will embed microscopic carbon particles into the stainless surface. This contamination leads to rust and rejects. Implement mitigation strategies, such as wiping down the rollers with appropriate solvents between material changeovers or dedicating specific machines to specific material families.
Wipe down rollers with industrial solvents after processing carbon steel.
Inspect backup bearings monthly for signs of wear or inadequate lubrication.
Calibrate dial indicators quarterly to ensure entry and exit gap readings remain accurate.
Remove laser slag from parts before leveling to protect the roller surface finish.
Audit your current scrap rates and labor hours dedicated to manual flattening on press brakes to quantify your exact downstream bottleneck costs.
Identify the most common material thickness and yield strength processed in your facility to determine the correct roller diameter configuration.
Develop a standardized setup matrix for your operators to document dial indicator settings for all recurring material batches.
Request sample leveling tests from manufacturers using your own heavily warped parts before finalizing any machine specification.
A: A press brake uses single-point pressure, requiring operators to manually shim, bend, and check parts repeatedly, often taking over 10 minutes per piece. A leveling machine uses a continuous, multi-roller process to bend the material past its yield point, relieving internal stress and flattening parts uniformly in under a minute.
A: Yes. The machine utilizes an alternating bending process that forces the material through a series of decreasing radii. This plastic deformation shatters and neutralizes the internal thermal stresses introduced by the laser, preventing the part from warping or springing back during subsequent welding operations.
A: Roller size must match your material thickness and yield strength. Use 30mm rollers for thin sheets and foils to ensure deep penetration. Choose 40mm for versatile, mid-range sheet metal. Select 50mm rollers for thick plates to prevent structural deflection and ensure proper material yielding.
A: No. Machines specifically designed for thin foils utilize highly polished, precision-ground rollers. They incorporate strict tension and micro-pressure controls to induce plastic deformation without stretching, tearing, or marring the delicate surface finish of materials like copper or aluminum foil.
A: These machines process a wide variety of metals, including mild steel, stainless steel, aluminum, copper, and specialized aerospace alloys. However, the machine's maximum thickness capacity is strictly dictated by the specific yield strength of the material being processed.
A: Roller leveling is highly efficient. A single pass through the machine typically takes less than one minute per part. This provides a massive throughput advantage compared to traditional manual flattening methods on a press brake, which often consume 10 to 15 minutes per part.
