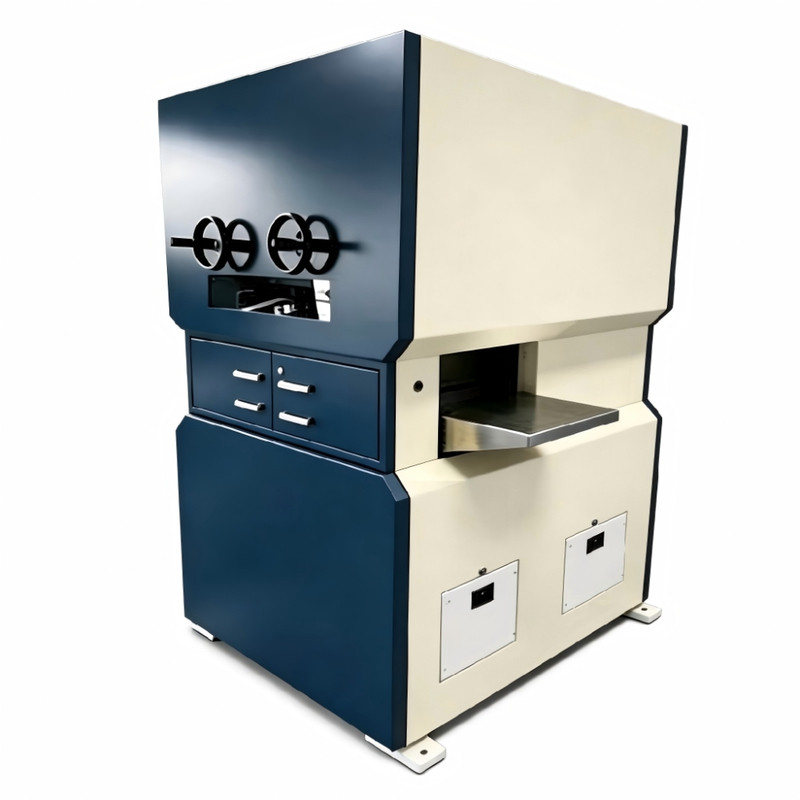

Manual Leveling Machine (40mm Roll Diameter)

Product Introduction

This economical 40mm-roll-diameter leveling machine is a precision leveling device for metal sheets. It features a proven design with manually adjustable roll gaps and motor-driven leveling rolls, balancing ease of operation with processing stability. Utilizing an interlaced roller system and the Bauschinger effect, the machine subjects thin sheets to multiple alternating bends, efficiently eliminating internal stresses and improving flatness without damaging the sheet surface. Suitable for a variety of materials including Q235, stainless steel, aluminum, and copper, it is a cost-effective choice for small-batch, high-precision processing in sheet metal, hardware, electronics, and automotive parts industries.

Product Advantages

• 1. Manual fine-tuning + electric roller drive: user-friendly and stable. The roller gap is finely adjusted via a handwheel, allowing quick adaptation to different sheet thicknesses with simple operation requiring no specialized experience; the leveling rollers are driven stably by motors, ensuring uniform feeding and continuous operation, with efficiency far exceeding that of purely manual equipment.

• 2. Quadruple-roll system structure for high leveling precision. Equipped with a quadruple-roll system and dense supports, the machine offers high rigidity and minimal deformation. It reliably eliminates residual stress in sheet metal, effectively correcting warping caused by laser cutting, stamping, and bending, and achieves a high flatness compliance rate.

• 3. Protects sheet surfaces with no roller marks or scratches. The leveling rollers undergo precision machining and surface treatment, combined with a uniform support design, ensuring no indentations or surface scratches when processing high-precision materials such as mirror-finished or polished sheets.

• 4. Durable construction with low maintenance costs. The machine body is constructed from thickened steel plates welded together, and the rollers are wear-resistant and durable. The overall design is simple, resulting in a low failure rate; daily maintenance requires only cleaning and lubrication, ensuring strong long-term stability.

• 5. Compact footprint, wide adaptability, and ideal for flexible production. The compact body saves space and can be flexibly placed at any workstation in the workshop, making it suitable for scenarios involving multiple varieties, small batches, and prototype production, with strong versatility.

Technical Specifications

Main Components

A typical manual leveling machine usually consists of the following core components:

1. Frame

This is the equipment’s “skeleton,” typically made of a sturdy welded steel structure or high-strength cast iron to ensure the machine does not deform under immense pressure, thereby guaranteeing straightening accuracy and stability.

2. Roller System

This is the “heart” of the straightening machine, coming into direct contact with the sheet metal. It consists of two rows of rollers arranged in an alternating pattern.

Work Rolls: These directly apply pressure to the sheet metal and cause it to bend. The number of rolls ranges from a few to over twenty; generally, the more rolls there are, the higher the leveling accuracy.

Backup Rolls: Located behind the work rolls, they provide strong support to prevent the work rolls from bending under high pressure and ensure even pressure distribution.

3. Gap Adjustment Mechanism

This is the core “manual” component of a manual leveling machine. It typically consists of a handwheel, a worm gear, or a lead screw. The operator rotates the handwheel to precisely adjust the vertical position of the upper row of rolls (the movable crossbeam), thereby altering the gap between the upper and lower work rolls (i.e., the roll gap). This gap determines the degree to which the sheet metal is bent.

4. Transmission System

Comprising a motor, a reducer, and a chain or gears, this system drives the working rollers to rotate, thereby guiding the sheet metal smoothly between the rollers.

Working Principle

The working principle of a manual leveling machine can be summarized as “eliminating internal stress through repeated bending.”

During rolling, cutting, or transportation, metal sheets develop unevenly distributed “internal stress,” much like a crumpled piece of paper—tight in some areas and loose in others—which causes irregularities such as waviness and warping in the sheet.

The operation of a leveling machine is akin to performing “stretching exercises” on the metal sheet:

• Repeated Bending: When the uneven sheet enters the leveling machine, it is subjected to continuous, repeated bending in both forward and reverse directions by the working rolls arranged in an alternating upper-lower configuration.

• Stress Release: At the inlet end, the roll gap is set narrower, resulting in the greatest degree of bending. This is sufficient to push the internal stresses of the sheet beyond its “yield point,” causing permanent plastic deformation. This effectively stretches the originally “tight” metal fibers and compresses the “loose” ones.

• Progressive Leveling: As the sheet moves toward the exit end, the degree of bending in the roll gap gradually decreases. Through repeated cycles of stretching and compression, the chaotic internal stresses within the sheet are redistributed and tend toward uniformity.

• Final Leveling: When the sheet exits the final roll, the internal stresses reach a new state of equilibrium, which manifests macroscopically as a level surface.

Manual Operating Procedure

The operation of a manual leveling machine relies heavily on the operator’s experience and typically follows these steps:

1. Set parameters: Based on the sheet’s thickness, material, and width, make a preliminary estimate and manually turn the handwheel to adjust the roll gap to a suitable initial value.

2. Test leveling and fine-tuning: Insert a short section of sheet metal for a test leveling run.

If the sheet still warps in the original direction after exiting the machine, this indicates insufficient pressure, and the roll gap must be reduced further.

If the sheet bends in the opposite direction, this indicates excessive pressure, and the roll gap must be increased.

3. Mass Production: After several test runs and fine-tuning until the desired flatness is achieved, lock the roll gap and begin mass production.
