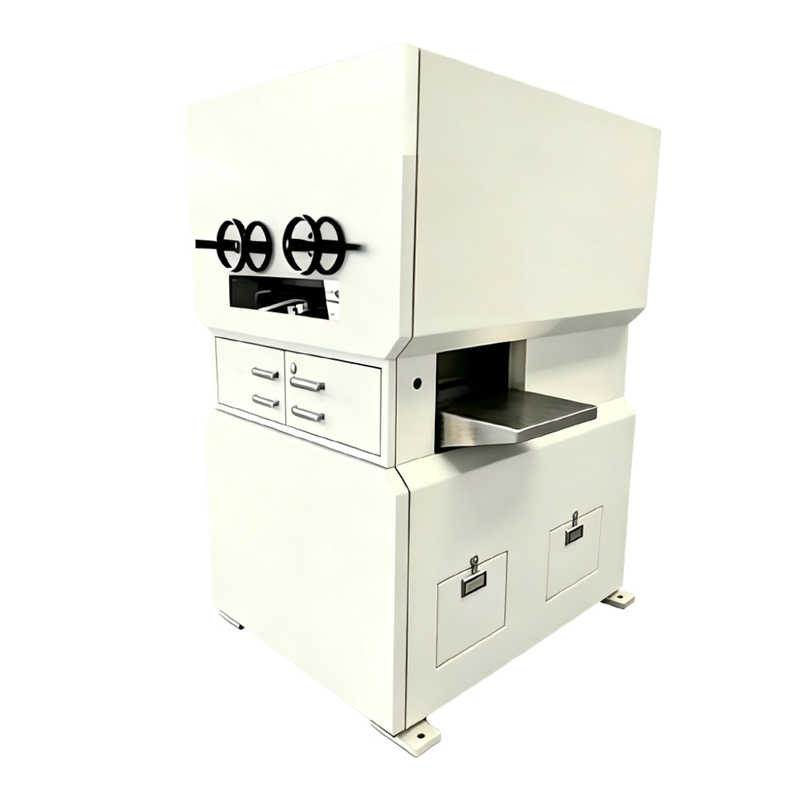

Manual Leveling Machine (50mm Roll Diameter)

Product Introduction

The 50mm-roll manual leveling machine breaks through the limitations of traditional models, focusing on precision and adaptability. Built around a standard 50mm roll diameter, it achieves high leveling accuracy with simple operation, no complex transmission required, making it an ideal solution for small-and medium-batch processing of thin and medium-gauge sheets across industries.

Unlike general equipment, it targets core needs: high leveling precision, easy maintenance, and strong versatility. Optimized structure effectively eliminates incomplete leveling, surface indentations, and poor material adaptability. Its user-friendly design enables quick operation without professional training, lowering labor costs and operational barriers while helping enterprises improve efficiency and cost-effectiveness.

Core Structure and Differentiation

• The 50mm standard roll diameter solves the insufficient load capacity of small rolls and cumbersome handling of large rolls. Rolls are made of high strength wear resistant alloy steel, treated by precision grinding and high temperature hardening, providing excellent compression resistance and durability, reducing deformation and surface scratches. It is well suited for medium to thin sheets with basic surface requirements.

• The scientifically staggered roll arrangement enables frequent progressive alternating bending to fully release internal residual stress, ensuring uniform stress distribution and eliminating waviness, warping, twisting, and dents. Leveling accuracy reaches ±0.15 mm/m², meeting precision demands for stamping, bending, welding, and cutting without secondary leveling, greatly improving efficiency.

• The one piece welded steel frame delivers high rigidity and stability, avoiding vibration induced leveling errors. The compact structure requires no fixed installation and can be flexibly deployed in workshops, small factories, maintenance shops, and temporary sites. The high efficiency energy saving motor with manual control provides stable power, reduces operator fatigue, and ensures continuous production with low maintenance.

• The user friendly control panel with high precision adjustment and clear scales supports parameter setting for various materials (Q235, SPCC, galvanized sheet, stainless steel, aluminum, etc.). It smoothly processes sheets from 0.8 to 4 mm without over bending damage, realizing true multi material, multi specification versatility.

Summary of Key Product Advantages

• Professional 50mm roll designOptimized for medium to thin sheets; hardened alloy rolls ensure wear resistance, stable precision, and thorough stress relief.

• Easy, efficient operationElectric drive reduces labor intensity; compact, movable, no fixed installation needed – ready for immediate use.

• Durable & low maintenanceOne piece welded frame + hardened rolls; only simple lubrication and cleaning required, service life over 8 years.

• Strong versatilityAdaptable to various metals and sheet thicknesses; supports flexible adjustment for small batch and temporary processing.

• High cost performanceEnergy saving motor, lower purchase cost than fully automatic models, higher precision than traditional manual machines.
