A JINGSHI CNC Leveling Machine is engineered for high-precision part leveling, sheet metal flattening, and residual stress relief in modern manufacturing. As one of the most widely used leveling solutions in the metal fabrication industry, CNC leveling equipment uses a fully automatic CNC control system, servo motors, ball screws, and high-rigidity mechanical structures to precisely adjust roll gap, leveling angle, and operating speed.
Unlike hydraulic leveling machines, JINGSHI CNC levelers do not rely on hydraulic pressure to generate leveling action. Instead, they use advanced mechanical drive systems to achieve accurate, stable, and repeatable roll adjustment. This all-electric or servo-driven structure delivers fast response, high production efficiency, lower maintenance requirements, and significantly reduced energy consumption. For manufacturers processing automotive sheet metal, home appliance panels, metal stampings, laser-cut parts, precision hardware, and formed blanks, CNC leveling machines provide a cost-effective balance of accuracy, productivity, and operating cost.
In high-volume and high-cycle production environments, standard CNC leveling machines have become essential equipment for improving flatness, dimensional accuracy, and downstream process stability. Sheet metal parts often develop internal residual stresses during stamping, punching, shearing, laser cutting, plasma cutting, and heat treatment. These stresses can cause warping, twisting, springback, or assembly errors if they are not properly removed.
JINGSHI CNC precision levelers solve these problems by passing the workpiece through a series of closely spaced leveling rolls. The machine applies controlled alternating bending forces to the material, gradually releasing internal stress and correcting surface deformation. The result is a flat, stable, and stress-relieved part that performs better in robotic welding, CNC bending, riveting, coating, and automated assembly.
JINGSHI CNC leveling machines use servo motors and precision ball screws to control the leveling roll system with high accuracy. Operators can adjust roll gap, roll angle, and processing parameters through the CNC system instead of relying on manual handwheel adjustment or hydraulic pressure regulation. This design improves repeatability, shortens setup time, and helps manufacturers maintain consistent leveling quality across different batches and materials.
For high-mix production lines, this is especially valuable. Once the correct parameters are saved in the machine control system, operators can quickly recall the recipe for future production. This reduces trial-and-error adjustment, minimizes operator dependency, and allows rapid changeover between different material thicknesses, widths, and strength grades.
Energy efficiency is one of the major advantages of CNC mechanical leveling equipment. Hydraulic leveling machines require hydraulic pumps, pressure systems, cooling systems, and continuous power consumption to maintain operating pressure. In contrast, CNC servo-driven leveling machines consume power more efficiently because the mechanical drive system only uses energy when adjustment or feeding action is required.
Some all-electric CNC leveling machine configurations can reduce energy consumption by more than half compared with traditional hydraulic models. For manufacturers running long shifts or continuous production lines, this difference can create meaningful savings in electricity cost, maintenance cost, and total operating cost over the machine’s service life.
CNC leveling machines are designed for fast response, precise motion control, and stable continuous operation. Servo motor adjustment allows the leveling system to react quickly to parameter changes, while the CNC control platform ensures consistent coordination between feeding speed, roll pressure, and leveling position. This makes JINGSHI CNC levelers ideal for high-volume production lines that require repeatable quality and short cycle times.
Compared with manual leveling machines, CNC models dramatically reduce setup and changeover time. Instead of spending around 20 minutes on manual adjustment and repeated testing, operators can use the smart HMI to retrieve saved recipes and complete automatic roll gap adjustment in under two minutes. This improves machine utilization and supports lean manufacturing workflows.
Although CNC mechanical leveling machines do not generate the same maximum leveling force as large hydraulic models, their precision fully meets the requirements of most industrial sheet metal applications. They are widely used for automotive parts, appliance panels, elevator components, electrical cabinets, metal enclosures, hardware stampings, laser-cut blanks, aluminum plates, stainless steel parts, and carbon steel sheets.
For manufacturers that need excellent flatness, fast adjustment, high efficiency, and reasonable investment cost, CNC leveling equipment is often the most practical choice. It provides the accuracy required for automated production while avoiding the higher energy consumption and more complex maintenance associated with hydraulic systems.
Laser cutting, punching, stamping, and thermal processing can introduce uneven stress into metal parts. If these stresses remain inside the workpiece, the part may deform during bending, welding, machining, or assembly. JINGSHI precision part leveling machines remove these internal stresses through repeated elastic-plastic bending between multiple rolls.
This process helps prevent post-cutting deformation, improves part stability, and reduces the risk of downstream defects. Flat and stress-free parts also improve welding seam accuracy, bending angle consistency, fixture positioning, and final assembly quality.
The intelligent HMI system allows operators to input key production data such as material thickness, yield strength, material width, and leveling requirements. The CNC system then controls servo motor adjustment to position the leveling rolls accurately. Frequently used parameters can be saved as recipes, allowing fast repeat production and consistent results between operators, shifts, and batches.
This function is especially useful for factories processing multiple part numbers or different materials every day. It reduces setup errors, improves repeatability, and helps production teams achieve stable quality with less manual experience required.
Short blanks and small stamped parts can be difficult to process on standard leveling equipment because they may slip, tilt, or jam between rolls. JINGSHI CNC levelers are engineered with optimized roll spacing, stable support structures, and precise feeding control to process short sheet blanks down to 60 mm in length.
This capability makes JINGSHI CNC leveling machines suitable for small automotive stampings, electronic components, precision hardware blanks, appliance brackets, laser-cut parts, and other compact metal workpieces that require accurate flatness.
JINGSHI offers multiple CNC precision leveler series based on roll diameter, material thickness range, and application requirements. Whether you need to level thin aluminum sheets, stainless steel panels, medium-thick carbon steel parts, or heavy structural blanks, our engineering team can recommend the most suitable configuration for your production line.
| Series | Roll Diameter | Number of Rolls | Thickness Range | Typical Applications |
|---|---|---|---|---|

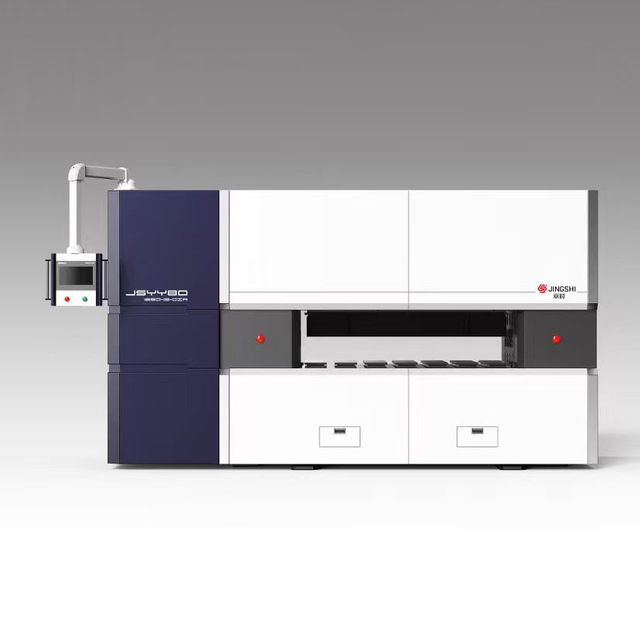

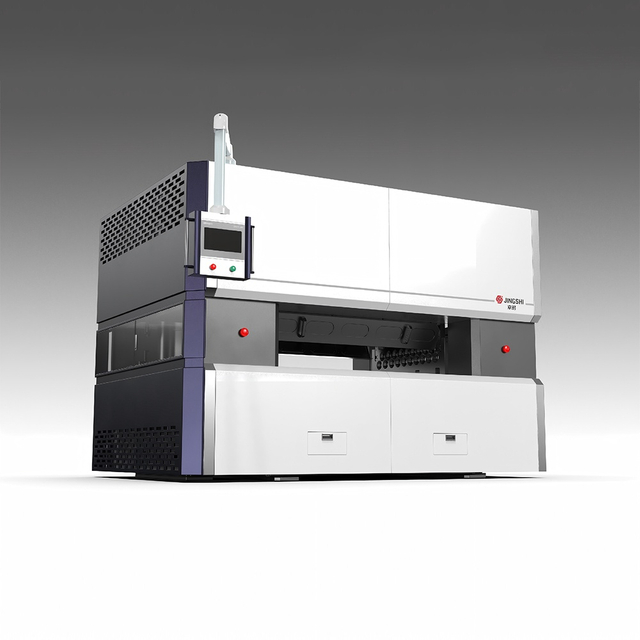

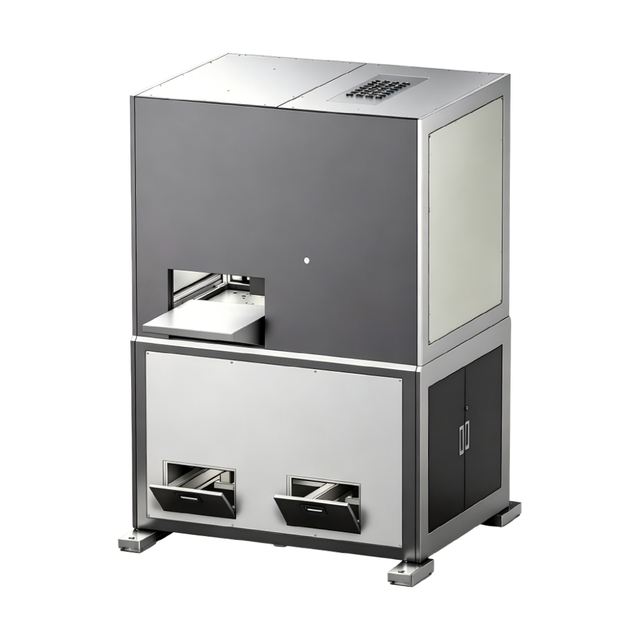

| 30 Series CNC Precision Leveler | 30 mm | 19 - 21 | 0.5 - 3.0 mm | Thin sheets, electronics, copper, aluminum alloys, decorative panels |

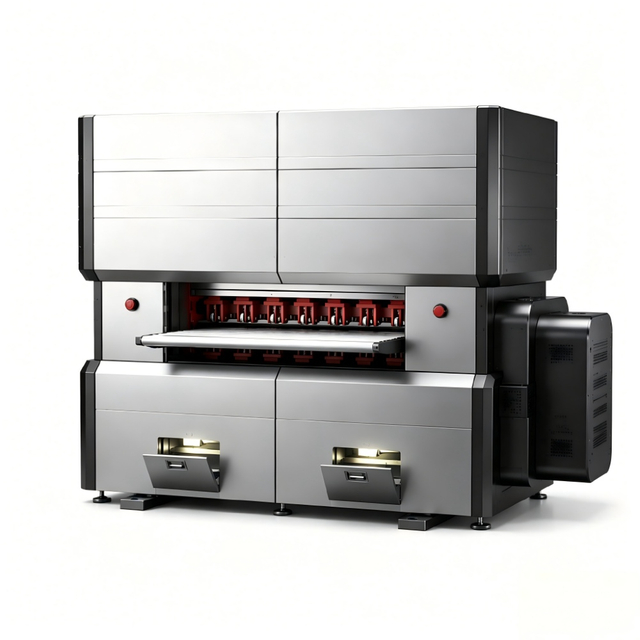

| 40 Series CNC Precision Leveler | 40 mm | 19 - 21 | 1.0 - 5.0 mm | Automotive stampings, appliance panels, laser-cut sheet metal parts |

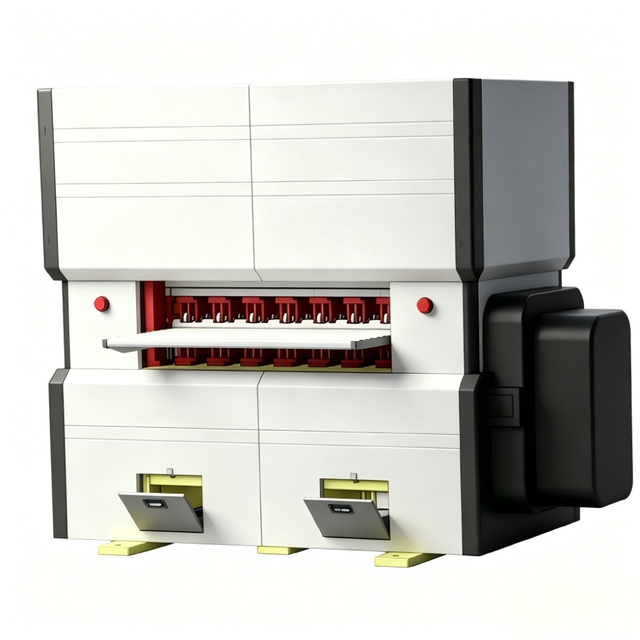

| 50 Series CNC Precision Leveler | 50 mm | 19 - 21 | 1.5 - 8.0 mm | Medium-thick plates, structural parts, metal fabrication components |

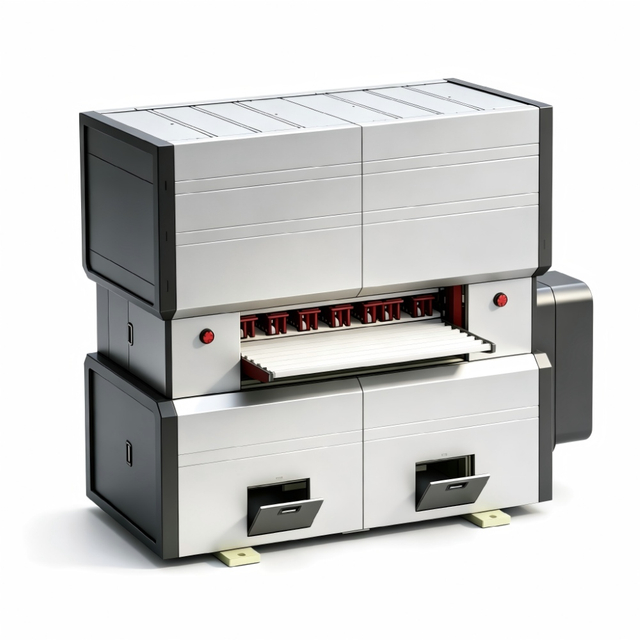

| 60 Series CNC Precision Leveler | 60 mm | 19 - 21 | 2.0 - 12.0 mm | Heavy plate processing, steel fabrication, thick laser-cut blanks |
Both CNC mechanical levelers and hydraulic levelers can improve material flatness, but they are designed for different production priorities. Hydraulic models are generally used when extremely high leveling force is required for very thick or high-strength plates. CNC mechanical leveling machines, however, are preferred for applications that require high precision, faster response, lower energy consumption, easier parameter control, and better cost efficiency.
| Feature | CNC Leveling Machines | Hydraulic Leveling Machines |
|---|---|---|
| Drive Method | Servo motors, ball screws, CNC mechanical control | Hydraulic cylinders and hydraulic pressure systems |
| Adjustment Accuracy | High precision and repeatable digital adjustment | Strong force output with pressure-based adjustment |
| Response Speed | Fast servo response for high-cycle production | Slower response due to hydraulic system characteristics |
| Energy Consumption | Lower energy use; all-electric models can save more than half the energy | Higher energy use due to hydraulic pumps and pressure systems |
| Best For | Automotive sheet metal, appliance panels, stampings, laser-cut parts | Very thick plates or applications requiring extremely high leveling force |
Manual leveling machines are economical for small batches, simple materials, and low-frequency production. However, they depend heavily on operator experience and require repeated manual adjustment. CNC leveling machines are a better choice for factories that need higher repeatability, faster changeover, better quality control, and more stable production output.
| Feature | Manual Leveling Machines | CNC Leveling Machines |
|---|---|---|
| Adjustment Type | Manual handwheel adjustment | Automatic servo motor adjustment |
| Setup and Changeover | Approx. 20 minutes with trial and error | Under 2 minutes via saved recipes |
| Repeatability | Dependent on operator skill | High repeatability with CNC digital control |
| Operator Requirement | Experienced operators required | Easy operation through HMI presets |
| Production Suitability | Low-volume, single-specification production | High-mix, high-volume, automated production lines |
JINGSHI CNC leveling machines are built with high-rigidity frames, precision roll systems, and durable mechanical transmission structures. Depending on the material and surface requirements, the machine can be configured with high-hardness steel rolls, chrome-plated rolls, or polyurethane-coated rolls. These options help protect stainless steel, aluminum, copper, titanium alloys, and coated materials from surface marking during leveling.
Our machines support 4-high and 6-high roll configurations to improve mechanical stability, roll support, and leveling consistency. Quick-access cassette designs are also available to simplify cleaning and maintenance. Operators can access the roller assembly more easily to remove metal dust, scale, and debris, helping reduce downtime and maintain long-term processing efficiency.
JINGSHI CNC precision levelers can be integrated into automated coil processing lines, laser cutting lines, stamping lines, blanking lines, and robotic feeding systems. The CNC control system can coordinate with uncoilers, feeders, conveyors, stackers, robotic loading devices, and other automation equipment to create a synchronized production workflow.
For manufacturers focused on high efficiency, consistent flatness, and reduced labor input, JINGSHI CNC leveling machines provide a reliable solution for continuous industrial production. As a professional CNC leveling machine manufacturer, Suzhou Jingshi Intelligent Equipment Co., Ltd. offers standard models and customized automation solutions for different materials, thicknesses, part sizes, and production requirements.
What is a CNC leveling machine?
A CNC leveling machine is an automatic sheet metal leveling system controlled by a CNC platform. It uses servo motors, ball screws, and precision roll systems to adjust roll gap, leveling angle, and processing speed, helping remove internal stress and improve metal part flatness.
What materials can JINGSHI CNC levelers process?
JINGSHI CNC precision levelers can process carbon steel, stainless steel, aluminum, copper, titanium alloys, galvanized sheets, coated panels, automotive sheet metal, appliance panels, laser-cut blanks, and stamped parts.
How does a CNC leveling machine prevent warping after laser cutting?
Laser cutting introduces localized thermal stress into the material. A CNC leveling machine applies controlled alternating bending forces through multiple rolls to release residual stress, correct deformation, and produce flatter, more stable parts.
What is the minimum workpiece length a JINGSHI CNC leveling machine can process?
JINGSHI machines are designed with optimized roll spacing and stable support structures, allowing them to process short sheet blanks and precision parts down to 60 mm in length.
Is a CNC leveling machine more energy-efficient than a hydraulic leveler?
Yes. CNC servo-driven levelers typically consume less energy because they do not rely on continuous hydraulic pressure. Some all-electric configurations can save more than half the energy compared with hydraulic leveling systems.
Which industries use CNC leveling machines?
CNC leveling machines are widely used in automotive manufacturing, home appliance production, sheet metal fabrication, laser cutting, stamping, elevator manufacturing, electrical cabinet production, hardware processing, and automated assembly lines.
Contact JINGSHI today to discuss your material thickness, part size, flatness requirement, and production capacity. Our engineering team can recommend the right CNC leveling machine configuration for your sheet metal leveling and stress relief process.
