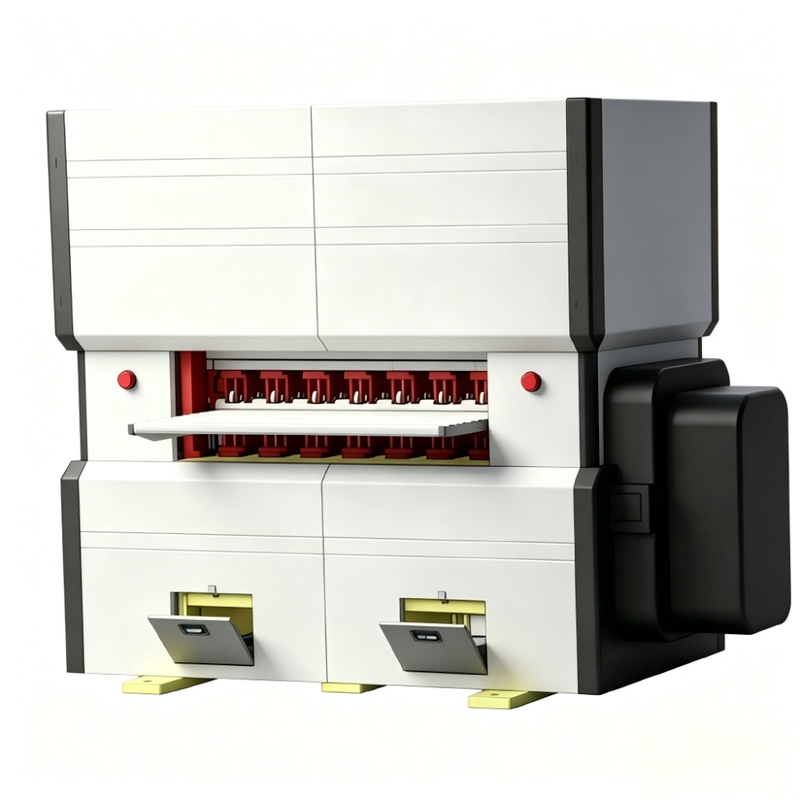

50 Series CNC Precision Leveler

Product Introduction

The Model 50 Series CNC Precision Leveler represents a significant leap in heavy-duty metal fabrication technology, specifically engineered to address the rigorous demands of thick-plate processing. As a cornerstone in the standard series, this machine is built to tackle the challenges associated with high-yield-strength materials and substantial thicknesses. At its core lies a robust 50mm diameter roll system, configured in a specialized 19-roll heavy-duty arrangement. This specific architecture is optimized for standard working widths ranging from 400mm to 2100mm, providing a versatile platform for diverse industrial applications. The Model 50 is rated for a material thickness range of 0.8mm to 4.0mm, with a formidable maximum capacity of 8.0mm, making it the definitive solution for heavy machinery, shipbuilding components, and large-scale structural steel fabrication.

Unlike lighter models, the Model 50 prioritizes torque and structural rigidity. The 19-roll configuration ensures that even at maximum thickness, the material undergoes sufficient alternating bending to eliminate internal stresses, coil set, and crossbow defects. This results in a finished product with exceptional flatness, ready for laser cutting or welding without secondary operations.

Product Advantages

• The primary advantage of the Model 50 Series is its operational efficiency driven by automation. By automating the roll gap setting process, the machine drastically reduces setup times between different jobs. What used to take 15-20 minutes of manual adjustment now takes seconds, maximizing machine uptime. Furthermore, the CNC system ensures that once a parameter set is saved, it can be recalled instantly for repeat orders, guaranteeing identical flatness results every time. This repeatability is crucial for mass production environments where consistency is key.

• Another significant benefit is the reduction in material waste. Traditional manual leveling often requires "test and adjust" methods that can scrap the leading edge of a coil. The Model 50's precise digital control minimizes this waste, ensuring that more of the raw material ends up as a sellable finished product. Additionally, the heavy-duty construction means lower maintenance costs over the machine's lifespan, as the components are over-engineered to handle the specified 8.0mm maximum thickness without premature wear.

Technical Specifications

Product Uses

• The Model 50 Series is specifically targeted at industries that require the processing of thicker, high-strength metals. Its ability to handle materials up to 8.0mm makes it indispensable in the heavy machinery manufacturing sector, where chassis components and support structures must be perfectly flat before welding. In the construction and infrastructure industry, it is used to level steel plates used in bridge building and building frameworks, ensuring structural integrity.

• Furthermore, the machine is widely utilized in the automotive and trucking industries for leveling chassis rails and structural beams that exceed the capacity of standard light-duty levelers. It is also suitable for shipbuilding, where thick hull plates require precise flattening to facilitate accurate assembly. The machine's versatility in handling widths up to 2100mm also makes it a favorite in service centers that process wide steel coils for distribution to various heavy industries.
