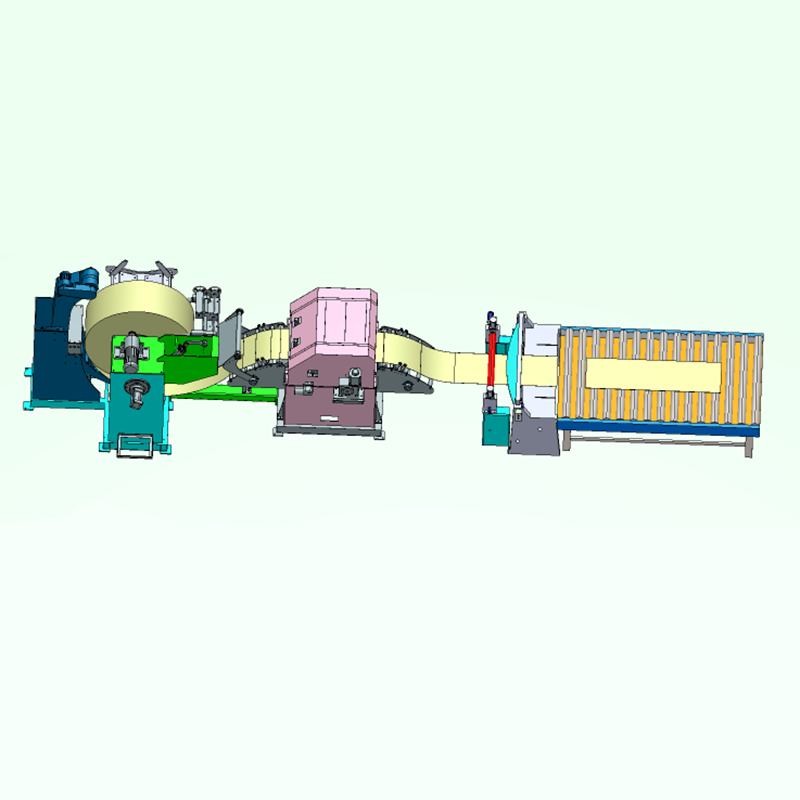

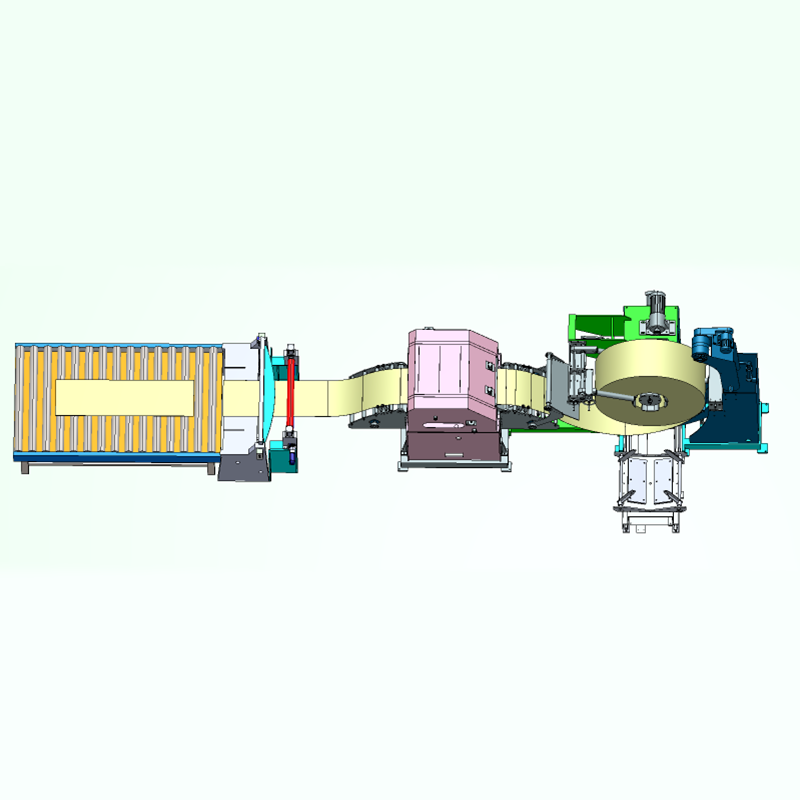

The coil uncoiling, leveling, feeding, and cutting line (commonly referred to as a cross-cutting line or leveling line) is a highly efficient, automated processing system that integrates uncoiling, leveling, fixed-length feeding, and cutting into a single unit. This equipment is primarily used to process coiled metal sheets (such as cold-rolled steel, hot-rolled steel, stainless steel, aluminum sheets, and galvanized sheets) into flat sheets of a specified length.
Its core operating principle is as follows: The metal coil is first uncoiled by the uncoiler and then fed into the leveling machine. Inside the leveling machine, the sheet is repeatedly bent and stretched by upper and lower alternating leveling rolls, eliminating internal stresses, sickle bends, and wavy edges to achieve extremely high flatness.
Regarding the feeding process, which is of particular interest to you, this production line employs a direct feeding method using the leveling machine’s powered roller conveyor. The leveling machine not only performs the leveling function but also utilizes its internal rollers (particularly those on the exit side) as a power transmission unit. Driven by servo or variable-frequency motors, these precision-machined rollers utilize friction with the sheet surface to smoothly and accurately convey the flattened sheet to the cutting mechanism for shearing. This design reduces intermediate transfer steps, preventing secondary scratches or misalignment of the sheet during conveyance.

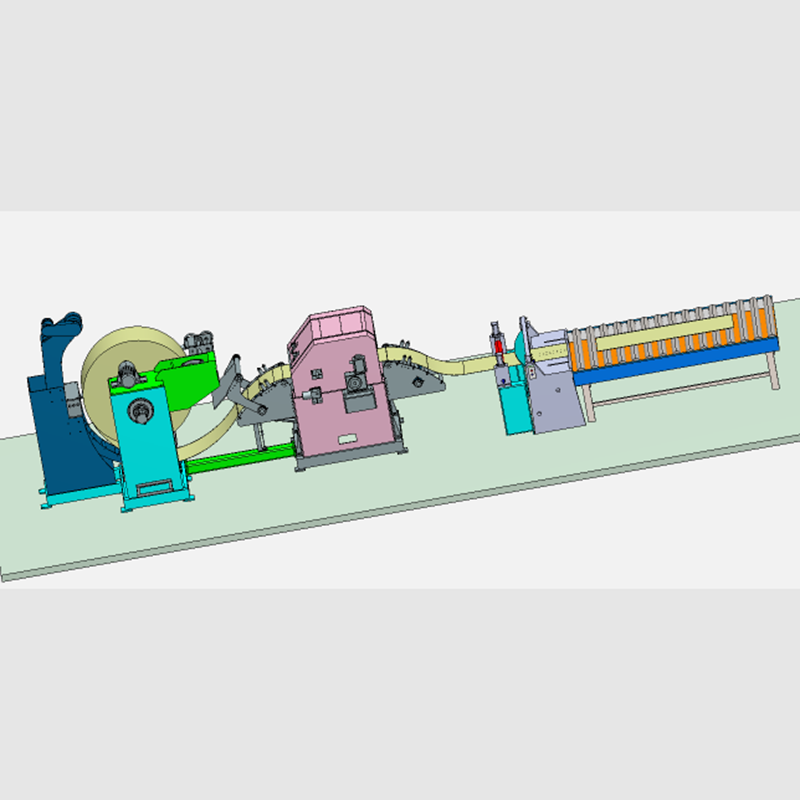

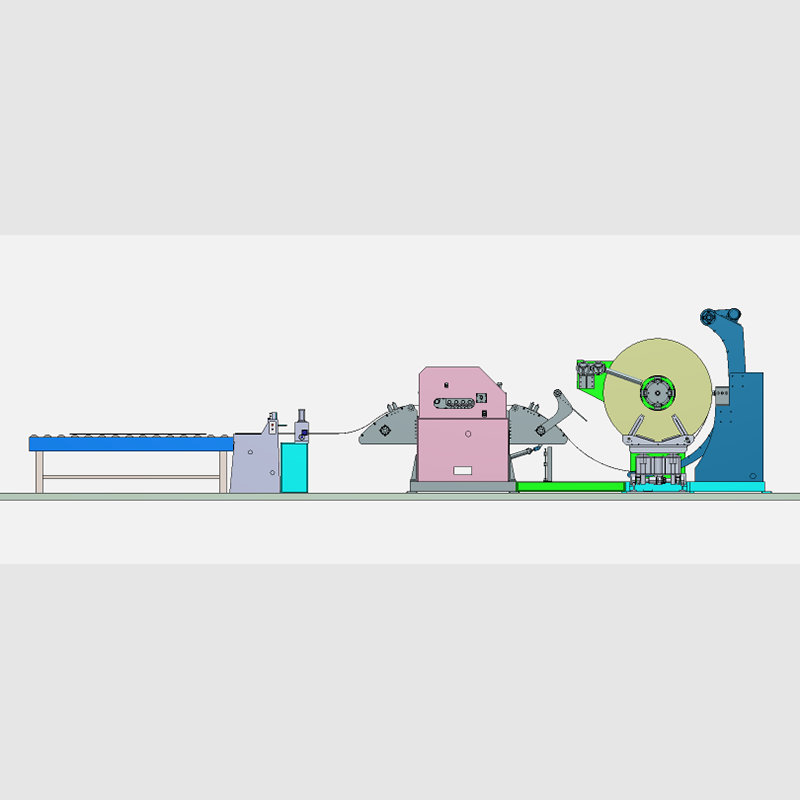

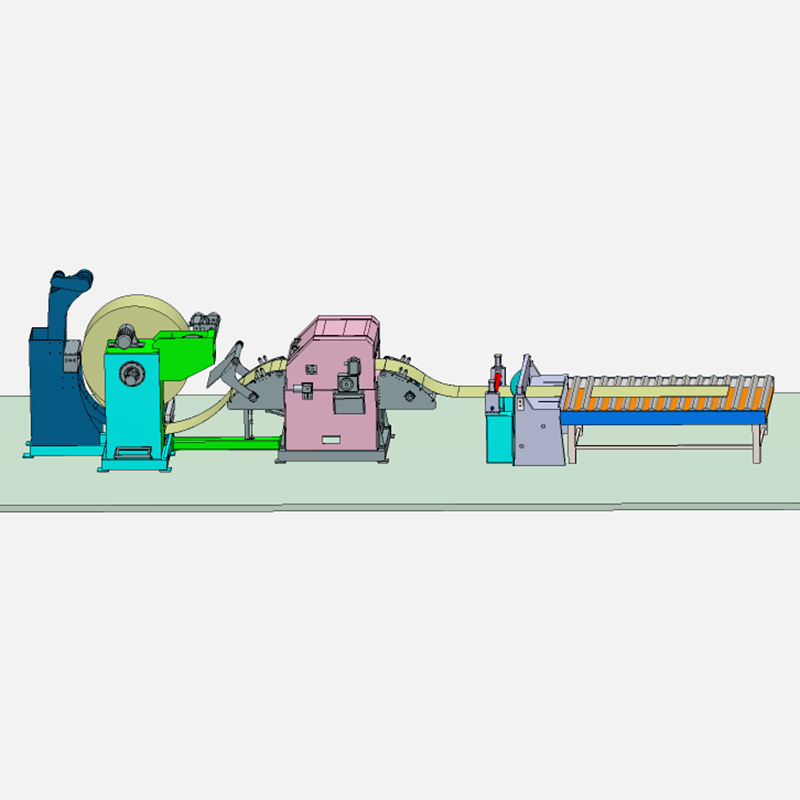

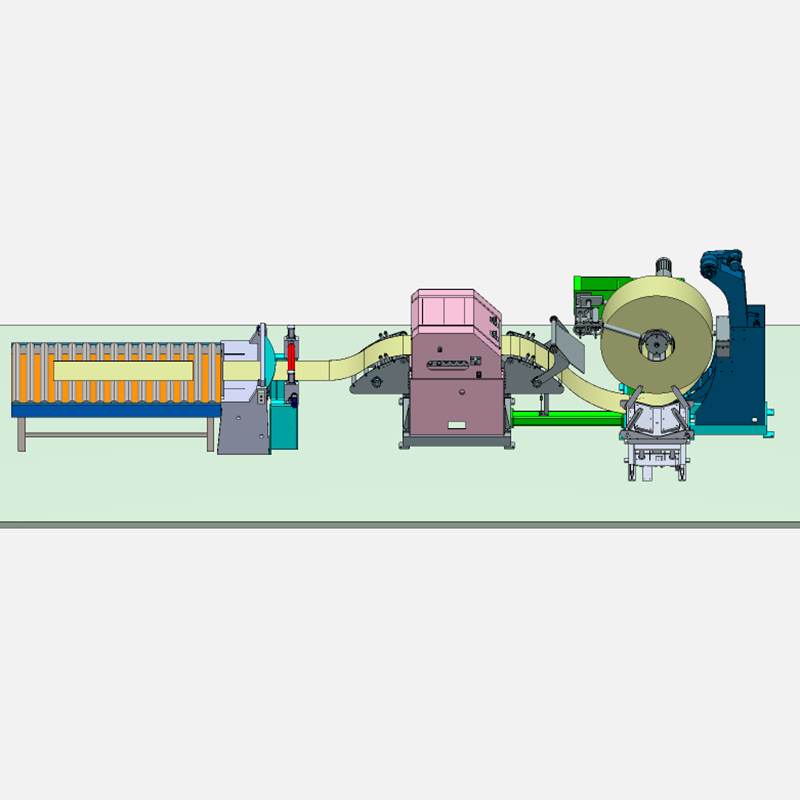

A standard uncoiling, leveling, and shearing line typically consists of the following main components:
Loading Trolley: Responsible for lifting the steel coil from the ground to the height of the uncoiler.

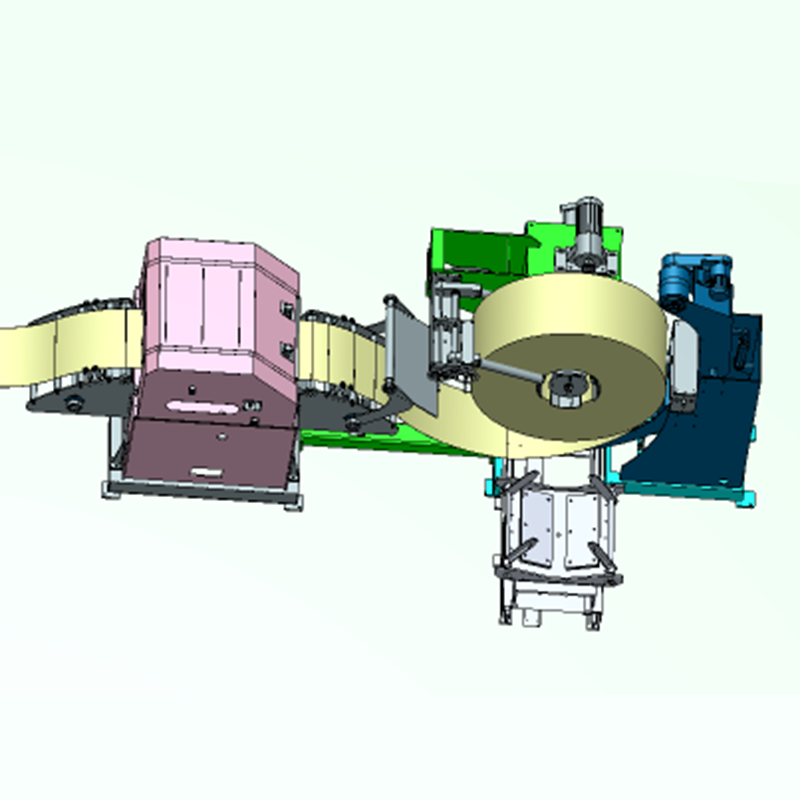

Uncoiler: Supports the steel coil and performs uncoiling; typically equipped with a hydraulic expanding/contracting drum to accommodate coils with different inner diameters.
Leveling Machine: This is the core component of the equipment. It consists of multiple sets of leveling rolls arranged in an interlaced upper-lower configuration, with the specific configuration selected based on your material.
Powered Feeding Mechanism: The rolls of the leveling machine are driven by motors (typically via gear or chain drives). As the sheet passes through the leveling rolls, the rollers generate forward thrust, directly “pushing” the sheet into the next process. This integrated design ensures synchronization between feeding speed and leveling performance.
Shearing Mechanism: Performs the shearing action. Common types include mechanical shears (suitable for high-speed shearing of thin sheets) and hydraulic shears (high shearing force, suitable for medium-to-thick sheets).
Features: Flat cut surfaces, burr-free, and no corner collapse.
Discharge and Electrical Control Unit

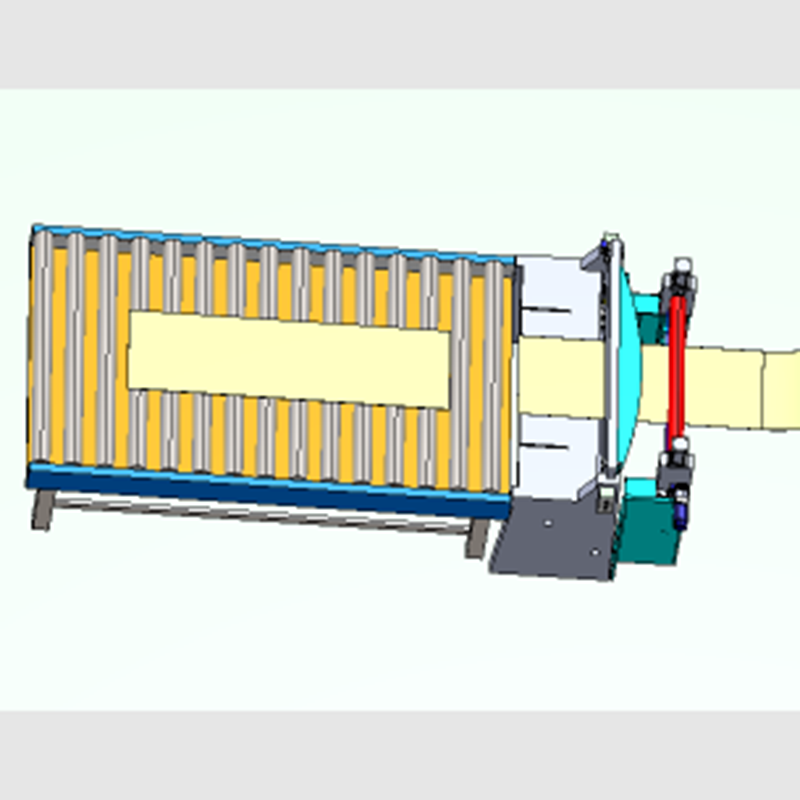

Discharge Rack/Stacking Device: Receives the cut sheets and can be equipped with an automatic stacking function.
PLC Electrical Control System: Touchscreen-controlled for setting length, quantity, and speed, with automatic, semi-automatic, and jog modes.
Compact structure, reduced damage: Direct feeding via the leveling machine’s rollers eliminates intermediate transfer belts or pinch rollers, minimizing the risk of surface scratches on the sheet metal. This is particularly suitable for processing stainless steel or aluminum sheets with high surface quality requirements.
Precise feeding: The powered roller conveyor, in conjunction with an encoder, enables precise control of sheet feeding length, ensuring cutting accuracy.
High-Precision Leveling: Multi-roll precision leveling ensures high flatness of the finished sheets with no internal stress, making them suitable for subsequent laser cutting or stamping.
High Degree of Automation: Fully automatic operation from uncoiling to discharge, requiring only one operator to manage the touchscreen, significantly reducing labor costs.
Excellent Cut Quality: Smooth cut surfaces with no burrs or rounded corners.
This equipment is widely used in industries requiring flat sheet materials:
Automotive Manufacturing: Material preparation for body stamping parts.
Home Appliance Industry: Processing of sheet metal for refrigerator, washing machine, and air conditioner casings.
Steel Structures and Construction: Processing of floor decking and corrugated sheet substrates.
Metal Fabrication: Manufacturing of various metal casings, enclosures, and cabinets.
Warehousing and Logistics: Steel processing centers that convert steel coils into flat sheets for sale.
