Sheet Metal Leveling in The Aviation Industry: Unique Challenges, Technical Solutions & Application Scenarios

Sheet Metal Leveling in the Aviation Industry: Unique Challenges and Technical Solutions

I. Four Major Challenges in Leveling Aviation Sheet Metal

The aerospace sector imposes far stricter requirements on sheet metal leveling than conventional industries, stemming from the unique properties of aerospace materials and the industry’s extreme pursuit of precision.

High Material Strength and Significant Springback Tendencies

The yield strength of aerospace aluminum alloys (such as 7075-T6, 2024-T3) and titanium alloys have yield strengths far higher than those of ordinary steel and exhibit strong “material memory”—that is, the tendency for the material to return to its original shape after being deformed under stress. Conventional leveling equipment and processes struggle to effectively eliminate their internal stresses, making the sheets highly prone to springback and reverting to their deformed state after leveling.

Extremely Stringent Flatness Tolerances

Flatness requirements for aerospace structural components are typically controlled within 0.05 mm. Taking large aircraft skin panels as an example, the design allows for a flatness deviation of only 0.05 mm, which places extremely high demands on the precision of leveling equipment.

Extremely Wide Range of Sheet Specifications

The range of sheet specifications commonly used in the aviation industry is extremely broad: it includes both ultra-thin skin panels ranging from 0.08 to 1.0 mm and wide, thick structural components ranging from 8 to 40 mm. Sheets of different specifications require leveling machines with matching roll diameters and numbers of rolls, making it difficult for a single piece of equipment to meet all requirements.

Zero Tolerance for Surface Quality

The surfaces of aerospace sheet metal must be free of any indentations, scratches, or microscopic damage, as these defects can serve as initiation points for fatigue cracks, directly threatening flight safety. Therefore, the material, surface hardness, and support structure of the leveling rolls must all be specially designed.

II. Technical Solutions and Equipment Requirements for Aerospace Materials

The basic principle of aerospace sheet metal leveling remains roll leveling—utilizing the Bauschinger effect to release internal stresses through repeated alternating bending. However, given the unique characteristics of aerospace materials, the equipment must meet higher standards in both structure and performance.

High-Roll Precision Leveling

The leveling of thin aerospace skin panels requires a configuration with an extremely high number of rolls—33 rolls or more—with roll diameters as small as 15 mm and the ability to process workpieces as short as 30 mm. A greater number of leveling rolls means the sheet metal undergoes more cycles of alternating bending as it passes through, resulting in more thorough release of internal stresses. For ultra-thin precision sheets ranging from 0.08 to 1.0 mm, a 33-roll leveling machine can control flatness to within 0.05 mm.

Six-Layer Structure Ensures Precision

The aerospace industry should prioritize leveling machines with a six-layer structure. This configuration—comprising intermediate rolls, upper and lower leveling rolls, and upper and lower support rolls—ensures that the leveling rolls do not deflect under high pressure, significantly reducing the clearance between rolls. For hard materials such as high-strength aluminum alloys and titanium alloys, high-precision leveling can only be achieved when the roll-to-roll clearance is extremely small and uniform.

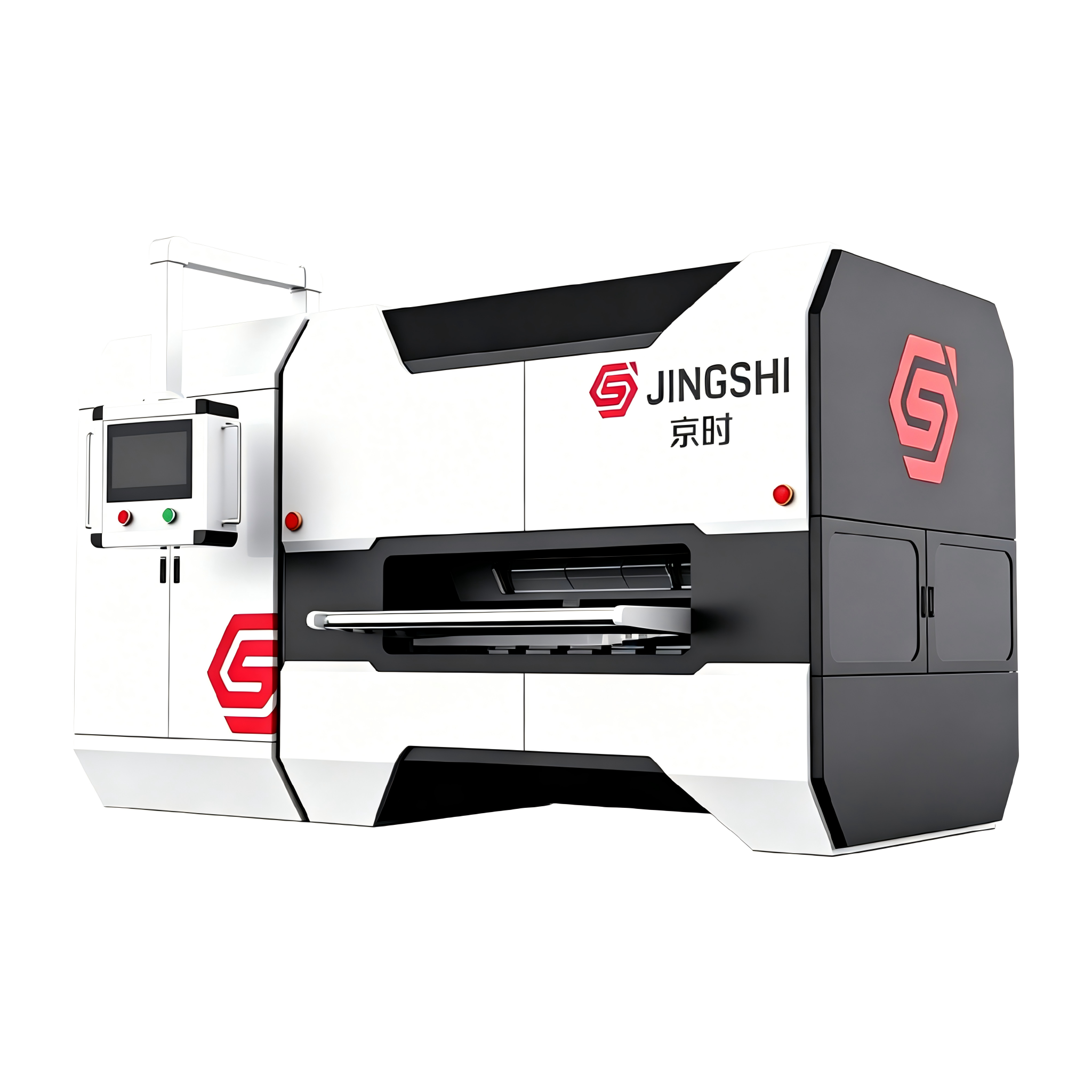

Servo-Hydraulic Drive Protects the Surface

The servo-hydraulic drive system provides extremely precise pressure control, ensuring the required leveling force while preventing indentations on the sheet surface. For materials with zero tolerance for surface defects—such as aerospace aluminum alloys and titanium alloys—servo-hydraulic drive is a mandatory configuration, not an optional one.

III. Typical Application Scenarios for Leveling Machines in the Aviation Industry

Scenario 1: Leveling of Aircraft Skin Panels. Aircraft skin panels are large aluminum alloy sheets that form the outer surface of the fuselage and require extremely high flatness and surface quality. After rolling and heat treatment, these panels exhibit wavy edges and warping, and must undergo precision leveling to meet assembly requirements. In a large aircraft localization project, a certain aviation industry group adopted high-precision super-leveling technology and customized a leveling process specifically for large aluminum alloy aircraft skin panels. This successfully resolved the challenge of workpiece flatness, with leveling accuracy matching and exceeding that of comparable equipment in Europe and the United States.

Scenario 2: Precision Leveling of Titanium Alloy Fixtures. In high-end product lines within the consumer electronics sector, titanium alloy fixtures used on production lines—due to their high strength and strong shape memory—undergo significant deformation during production, resulting in flatness deviations exceeding design requirements (0.05 mm) and severely impacting product yield rates. By employing high-end CNC leveling machines integrated with automated control systems to precisely process high-strength titanium alloy materials, the flatness accuracy of the sheets meets the design requirement of within 0.05 mm. Batch consistency has been significantly improved, and the yield rates for subsequent stamping and assembly processes have been substantially enhanced.

Scenario 3: Leveling of thick plates for aerospace structural components. Structural components such as aircraft wing spars and fuselage frames are manufactured using thick aluminum alloy or titanium alloy plates, with thicknesses ranging from 8 to 40 mm. Flattening such thick plates requires heavy-duty leveling machines with large roll diameters (150–260 mm) and high leveling force. Additionally, the internal stress distribution in thick plates is more complex, necessitating that the leveling machine possess strong leveling force and stable structural rigidity to effectively eliminate deep-seated internal stresses.
