Roller Leveling Machines: Working Principle, Bauschinger Effect & Equipment Selection

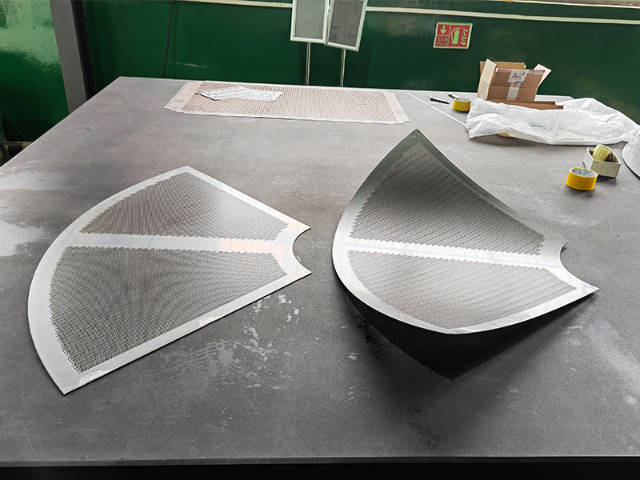

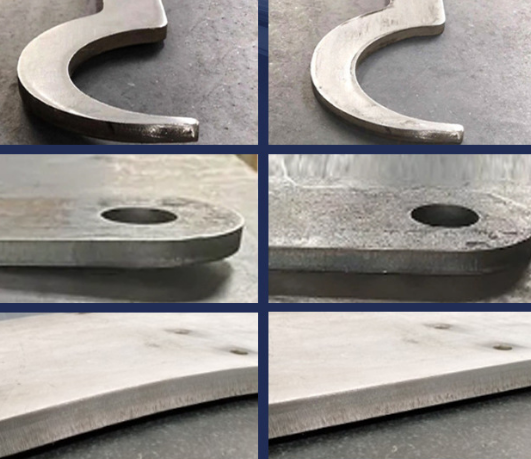

During processes such as shearing on shearing machines, punching on press brakes, flame cutting, laser cutting, and CNC machining, metal sheets are subjected to external forces and temperature changes, which generate residual stresses within the material. These stresses can lead to deformation defects such as twisting, bending, waviness, and unevenness. The key to restoring flatness to deformed sheet metal lies in eliminating its internal residual stresses. The roller leveling machine is specifically designed for this purpose—it utilizes the “Bauschinger effect” to repeatedly bend the sheet metal, gradually releasing internal stresses and distributing them evenly. This effectively corrects various deformation defects, significantly improving the flatness and overall quality of the metal sheets.

Working Principle and Equipment Selection for Roller Leveling Machines

Basic Principle

The core of roller leveling lies in the selective elongation of metal sheets. The interior of a sheet can be conceptualized as consisting of countless longitudinal “fibers”; when the lengths of these fibers vary across different sections, the sheet undergoes deformation. The purpose of leveling is to proportionally elongate the shorter fibers, ultimately bringing all fiber lengths into alignment.

Specifically, as the sheet passes through the leveling machine, it undergoes multiple cycles of up-and-down bending with small radii of curvature below the material’s yield point; during this process, the shorter fibers are gradually elongated. As the sheet moves toward the exit, the amplitude of bending gradually decreases to eliminate the additional deformation caused by the severe bending at the inlet. When the lengths of all fibers are essentially uniform, the sheet achieves a straightened state.

Key Considerations for Equipment Selection

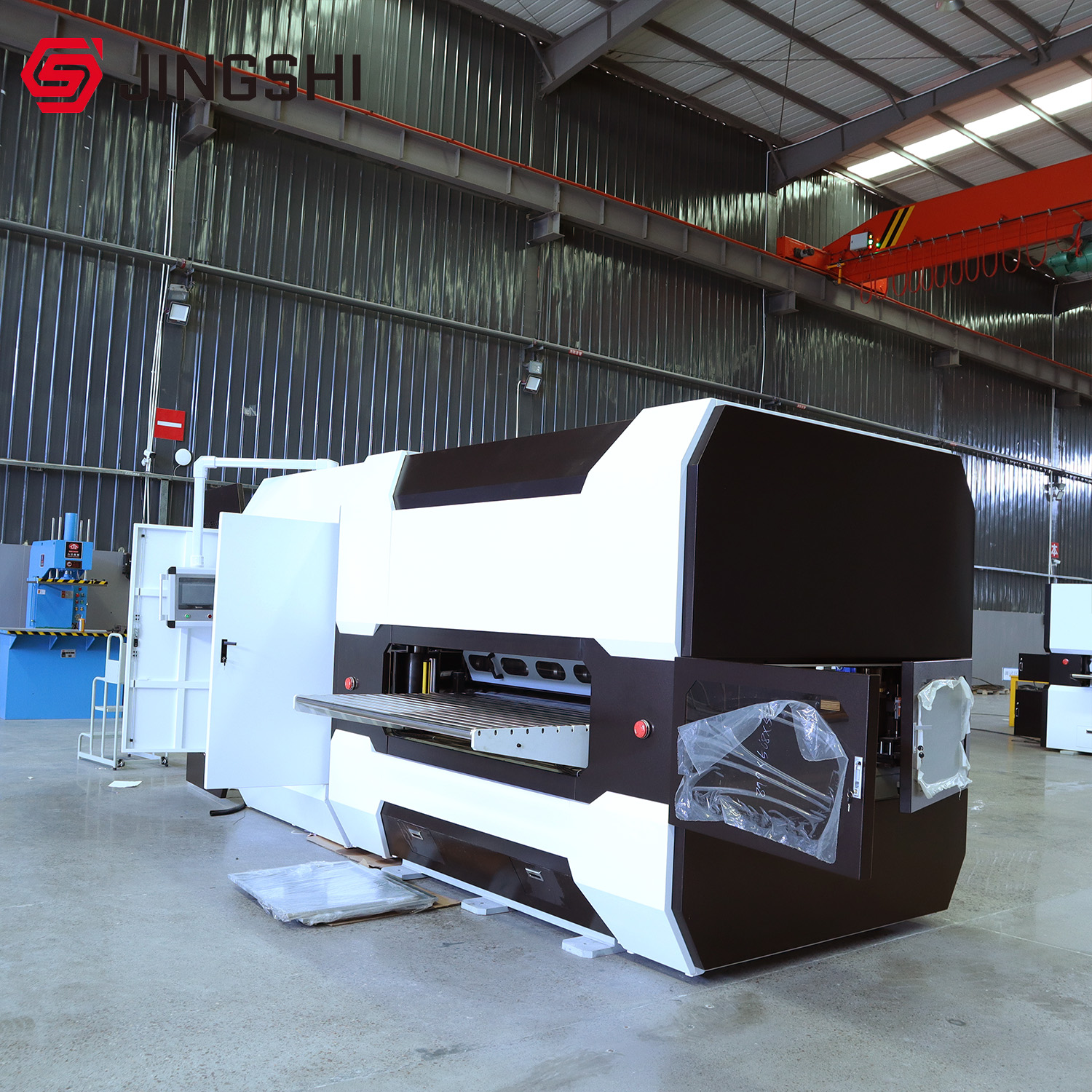

Roll leveling machines are a critical component of material processing production lines; proper selection directly determines the leveling effect.

Limitations of Simple Leveling Machines: With a small number of leveling rolls, large roll diameters, and no support rolls, these machines cannot apply sufficient deformation to the material, making it difficult to achieve high flatness; therefore, their scope of application is limited.

Prerequisites for High Flatness: Small-diameter leveling rolls, narrow roll spacing, and effective support of the leveling rolls by support rolls—all three are indispensable.

Challenges of High-Strength Materials: As the use of high-tensile-strength materials increases, leveling requires greater pressure, placing higher demands on the machine’s structural strength and the support of the leveling rolls. A robust machine frame and effective overload protection design are crucial for ensuring leveling quality and extending equipment lifespan.

Table Adjustment Mechanism: When leveling high-strength materials, higher leveling pressure must be applied by reducing the spacing between the leveling rolls. The new leveling machine is equipped with a table adjustment mechanism precisely to meet this need—it is also an effective means of minimizing roll spacing as much as possible within the constraints of the machine’s design.
