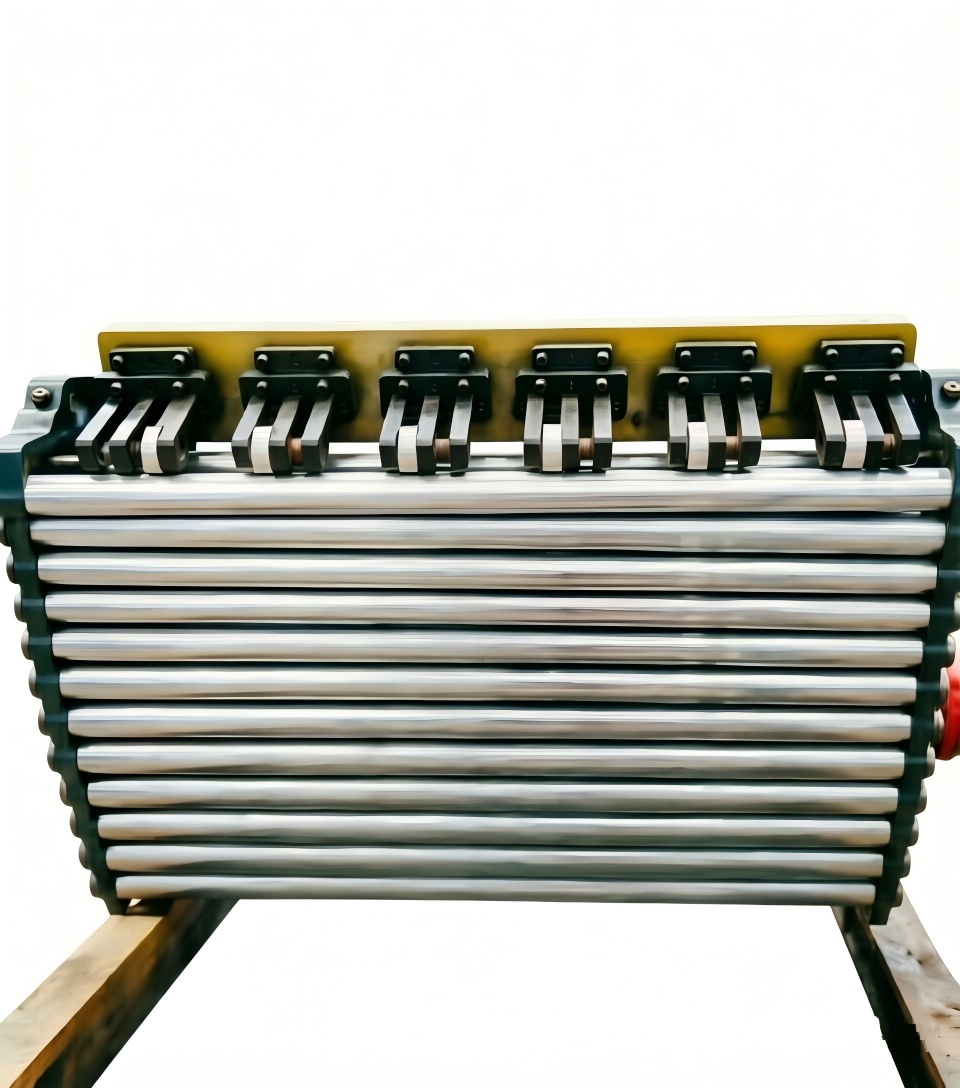

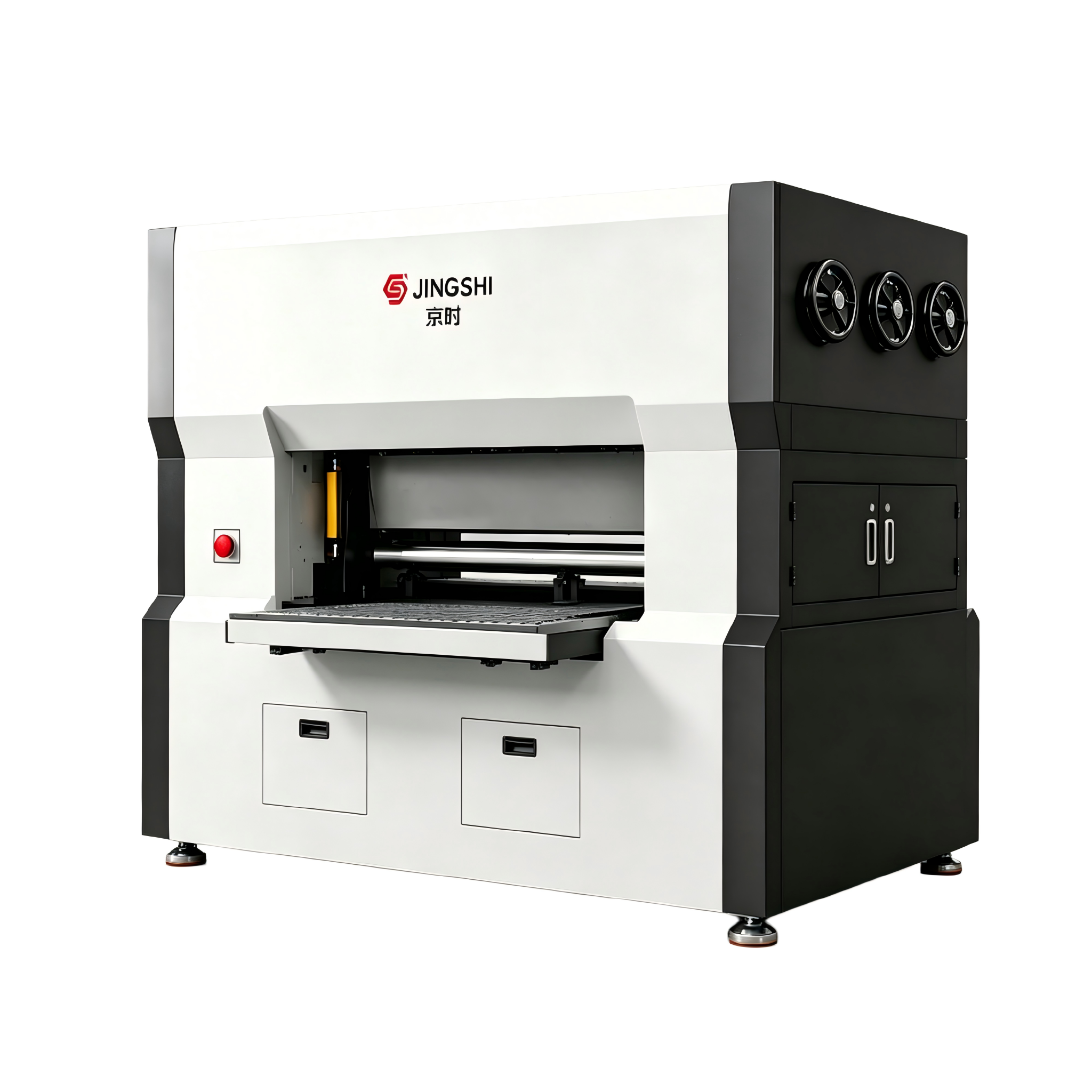

The work roll is the most critical component of a leveling machine; as the core element that comes into direct contact with the sheet metal and bears the heaviest load, its material, precision, and maintenance condition directly determine the quality of leveling, the equipment’s service life, and operating costs. However, in practical applications, work rolls are often treated as “consumables” and managed in a haphazard manner, leading to a loss of precision and waste of spare parts.
Loading Conditions: Why Are Work Rolls Most Prone to Damage?
Work rolls are subjected to complex combined loads during operation:
Bending Loads: The roll is supported at both ends by bearing housings, and the leveling force applied by the sheet metal generates the maximum bending moment at the center of the roll.
Contact Stress: The roll surface forms a line contact with the sheet metal, resulting in extremely high peak Hertzian stresses within the contact zone; when leveling high-strength steel, these stresses can even reach the material’s yield strength.
Friction and Wear: Slight slippage between the sheet metal and the roll surface causes continuous wear on the roll surface.
Fatigue Loads: Each time a sheet passes through, the roller surface undergoes a stress cycle; fatigue damage accumulates continuously during long-term operation.
These severe operating conditions require the working roller material to possess high hardness (for wear resistance), high toughness (for impact and fatigue resistance), and high dimensional stability (for resistance to thermal deformation).
Common Material Systems
High-Chromium Cast Iron Rolls
Formed through casting, these rolls derive their hardness from chromium carbides (Cr₇C₃), with surface hardness typically ranging from HRC 55 to 65. They offer excellent wear resistance at a relatively low cost and are a common choice for medium- and low-precision leveling machines.
Limitations: They are relatively brittle and are at risk of chipping when subjected to impact loads; internal casting defects are difficult to completely eliminate, and their quality consistency is inferior to that of forged parts.
Alloy Forged Steel Rolls
Forged from high-carbon chromium-molybdenum steel (such as 9Cr2Mo or GCr15) and subjected to quenching and tempering heat treatment, these rolls achieve a surface hardness of HRC 58–62 while retaining good toughness in the core, resulting in a “hard exterior, tough interior” performance gradient. Their overall mechanical properties are superior to those of cast iron rolls, making them the mainstream choice for precision leveling machines; they are particularly suitable for leveling thin sheets and high-strength steel.
Cemented Carbide Composite Rolls
A cemented carbide (WC-Co system) coating is applied to the exterior of the forged steel roll core via powder metallurgy or thermal spraying processes, resulting in a roll surface hardness exceeding HRC 70 and extremely high wear resistance. They are primarily used for leveling ultra-thin precision strip materials (such as silicon steel sheets, copper strip, and aluminum foil).
Limitations: High manufacturing costs; difficult to repair through grinding; the bond strength between the roll core and the coating is a critical control point.
Rubber or Polyurethane Rolls
The roll surface is made of elastic material, which replaces line contact with area contact, significantly reducing contact stress and preventing indentations. Suitable for applications requiring extremely high surface quality (such as mirror-finished aluminum sheets and pre-painted color-coated sheets).
Limitations: Limited leveling force; can only process thin sheets with low thickness and low strength.
Key Manufacturing Process Points
Roll Surface Grinding Accuracy: Rolls must undergo precision grinding before leaving the factory. Key specifications include:
Cylindricity: High-precision rolls require a tolerance of within 0.005 mm.
Surface Roughness (Ra): Standard rolls: Ra ≤ 0.8 μm; precision rolls: Ra ≤ 0.2 μm; ultra-precision rolls: Ra ≤ 0.05 μm.
Roll Camber: To compensate for roll deflection during leveling, work rolls are typically pre-ground to a slight convex shape.
Heat Treatment Process Control: The depth of the hardened layer on the roll surface is typically required to be between 5 and 15 mm. If too shallow, the hardened layer wears away too quickly; if too deep, the risk of cracking increases. Induction hardening is currently the mainstream method for roll surface heat treatment.
Dynamic Balancing: For high-speed leveling machines with linear speeds exceeding 30 m/min, work rolls must undergo dynamic balancing to minimize the impact of vibration on leveling accuracy and bearing life.
Failure Mode Identification
Uniform Wear: The most common form of failure. The overall diameter of the roll surface decreases, leading to a decline in leveling performance. This can be monitored through regular measurements of the roll diameter; when the diameter reaches the lower limit for regrinding, corrective grinding should be scheduled.
Spalling (Pitting/Peeling): Caused by contact fatigue, this results in pitting or flaking on the roll surface. It most commonly occurs in the transition zone between the hardened layer and the base material. Once detected, the machine should be shut down immediately for replacement; otherwise, damage will accelerate and contaminate the sheet surface.
Roll Surface Indentations (Imprints): When leveling hard particles (such as welding slag or iron oxide scale), foreign matter becomes embedded in the roll surface, creating pits that are transferred to subsequent sheet metal. Timely regrinding or replacement is required.
Thermal Cracks: When the roller surface temperature rises, uneven cooling or residual tensile stress may lead to microcracks on the surface after prolonged thermal cycling. High-strength steel leveling lines should be equipped with a roller surface cooling system (cool air or minimal lubrication).
Key Points for Routine Maintenance
Regularly clean the roll surfaces: Wipe the roll surfaces with a lint-free cloth and specialized cleaning agent during material changeovers to prevent contaminants such as iron oxide scale and oil stains from being pressed into the sheet surface. Continuous production lines may be equipped with automatic roll cleaning devices.
Periodically test roll surface hardness: Conduct quarterly spot checks of roll surface hardness. If the hardness decreases by more than 5 HRC, it indicates that the hardened layer has been worn through, and corrective grinding must be scheduled.
Maintain a Roll Condition Log: Record the cumulative leveling amount, previous grinding amounts, and current diameter for each roll. When a roll’s diameter is ground down to the minimum scrap limit (typically 90%–95% of the original diameter), scrap it promptly to prevent roll breakage accidents.
Bearing Lubrication Management: Strictly follow the equipment manual regarding grease selection and re-greasing intervals. If bearing temperatures exceed 70°C, investigate the lubrication status.
Work rolls are the primary determinant of leveling accuracy and equipment service life. From material selection and manufacturing processes to failure identification and routine maintenance during operation, standardized management procedures must be established for every stage. Giving work rolls the attention they deserve is fundamental to ensuring consistent leveling quality for batch-produced sheet metal.
