How Does A Coil Leveling Line Achieve Continuous Production? What Irreplaceable Role Does The Leveling Machine Play in This Process?

Uncoiling and Leveling Production Line: An Analysis of Core Architecture and Operating Technologies

In the continuous processing of metal sheets, the uncoiling and leveling production line plays a key role in transforming coiled material into flat sheets. This production line highly integrates processes such as loading, uncoiling, leveling, and feeding, replacing the traditional single-machine, sheet-by-sheet processing model with automated assembly-line operations, thereby significantly improving production cycle times and reducing labor costs.

Analysis of Core Functional Modules

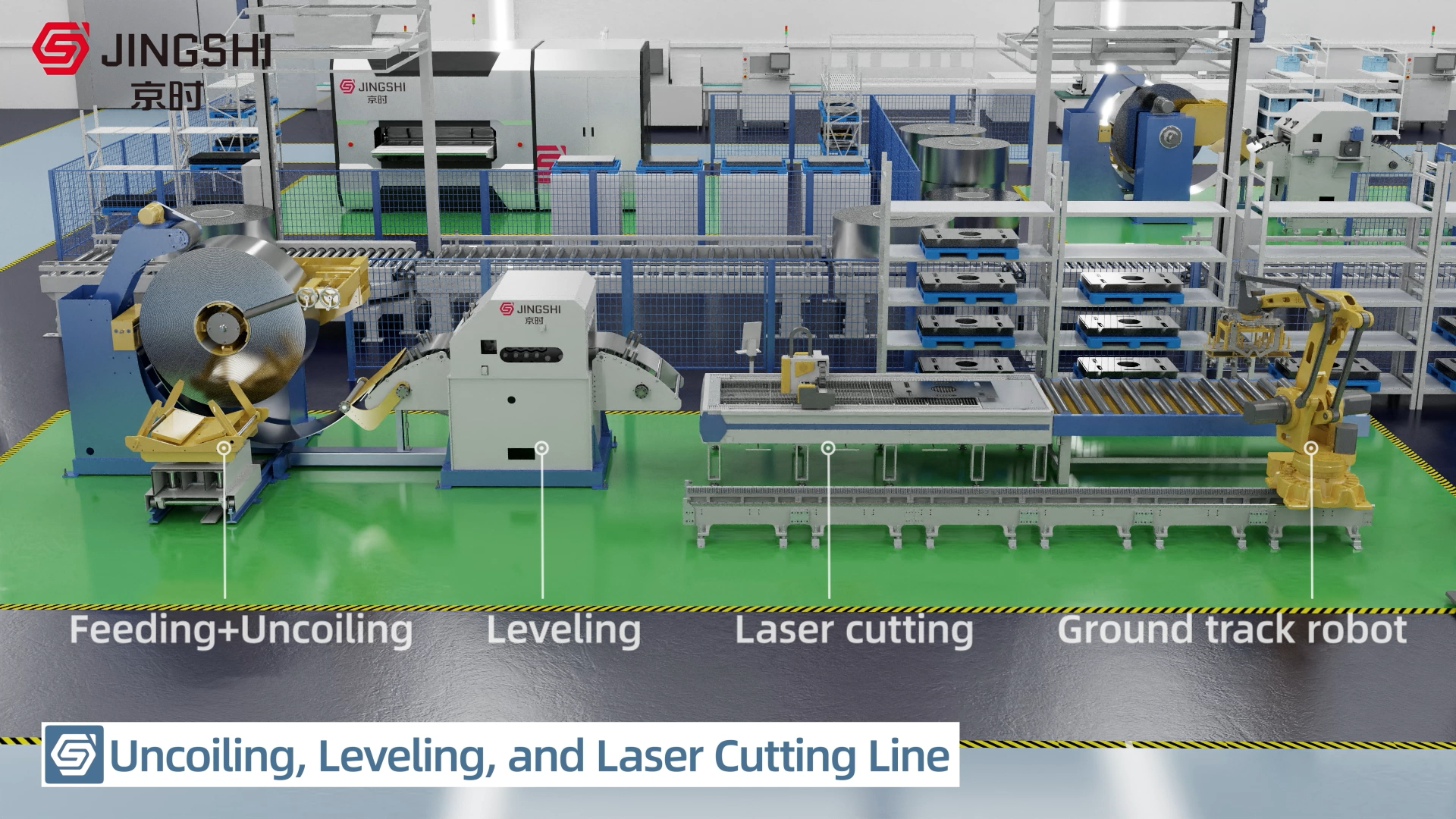

A standard coil unwinding and leveling line consists of the following four core units, each of which operates in close coordination with the others:

Uncoiler: As the starting point of the production line, the uncoiler supports the steel coil using a hydraulically expandable and contractible shaft and is driven by a motor to achieve controlled uncoiling. To prevent the coil from unraveling, the equipment is typically equipped with a coil clamp. Its load-bearing capacity (typically ranging from 500 kg to 30 metric tons) and coil diameter range are key criteria for selecting the appropriate production line.

Leveling Machine: This is the process core of the entire line. Unlike standalone machines, the leveling machine in a production line operates in continuous feed mode, eliminating curl deformation in the sheet metal through elastic-plastic bending generated by the staggered arrangement of multiple rolls. This unit places extremely high demands on the equipment’s dynamic response capabilities and long-term operational reliability.

Servo Feeder: Located downstream of the leveling machine, this unit uses clamping rollers or pneumatic gripping mechanisms—under the precise control of a servo motor—to feed the leveled sheet metal into downstream processing equipment at a preset pitch. Some high-precision production lines also incorporate additional guiding or secondary straightening devices before feeding to ensure final positioning accuracy.

Technical Challenges and Solutions for Production Line Integration

Integrating a leveling machine into a continuous production line places more stringent demands on its operational control:

Dynamic Speed Matching: The leveling machine must have a wide and smooth speed adjustment range to respond in real time to fluctuations in the upstream and downstream cycle times. Consequently, modern production lines have largely abandoned conventional motors in favor of variable-frequency or servo drive systems to prevent loss of control over the material loop or abnormal tension caused by speed mismatches.

Inlet Tension Control: The tension generated by the uncoiler’s braking system directly affects leveling quality. Excessive tension can cause tensile plastic deformation of the sheet between the rollers, while insufficient tension can lead to material pileup at the inlet. By installing a tension detection and closed-loop control system between the uncoiler and the leveling machine, optimal inlet tension can be precisely maintained.

Coil Change Efficiency Optimization: A production line’s overall capacity is highly dependent on coil change time. Traditional manual strip threading is time-consuming; modern production lines often use auxiliary devices such as hydraulic loading trolleys, automatic lead-in devices, and feed rollers to significantly reduce non-production time and improve overall equipment utilization.

Condition Monitoring and Quality Assessment

To ensure production lines operate under optimal conditions, a standardized quality inspection mechanism must be established:

Flatness Inspection: Place the sheet metal on a standard platform and measure the gap using a feeler gauge. Conventional precision requirements are typically within 1 mm/m, while precision machining requires even stricter standards.

Transverse Warpage Inspection: Observe the sheet by standing it upright across its width. If transverse warpage is present, it typically indicates deflection in the leveling rolls or uneven wear on the roll surfaces; the condition of the roll train must be investigated promptly.

Feed Accuracy Tracking: Monitor the cumulative deviation in the stopping position of the feed mechanism. If the deviation shows an increasing trend, it often indicates that residual stresses within the sheet have not been fully eliminated, resulting in microscopic displacement during the feeding process; in this case, the leveling parameters must be recalibrated.
