In the day-to-day production of sheet metal fabrication, “uneven sheet metal” has always been a common challenge facing professionals in the industry. From the residual curvature in cold-rolled coils that is difficult to eliminate after uncoiling, to warping and deformation caused by thermal stress during laser cutting and stamping processes, flatness deviations not only slow down subsequent production steps but also directly compromise the precision and quality of the finished product. The core equipment for solving this problem is the leveling machine—often referred to in the industry as a flattening machine or straightening machine. This article will provide a systematic analysis of this indispensable piece of equipment in sheet metal processing, focusing on four key aspects: working principles, structural classifications, application scenarios, and selection criteria.
I. Working Principle of a Leveling Machine: The Bauschinger Effect and Roller Leveling
The core principle of a leveling machine is based on a key phenomenon in the mechanics of metallic materials—the Bauschinger Effect.

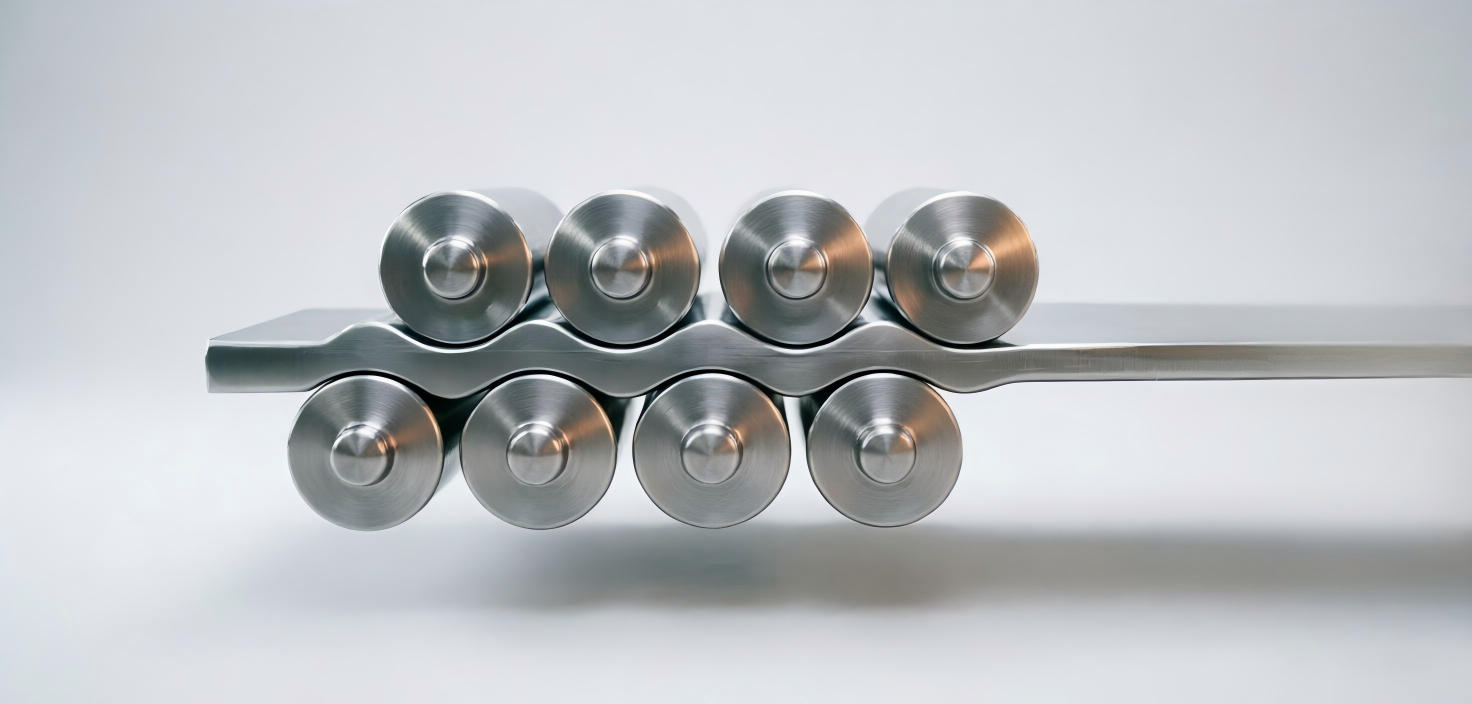

The Bauschinger Effect refers to the phenomenon where, after a metallic material undergoes plastic deformation in a certain direction, its yield strength is significantly reduced if a load is applied again in the opposite direction. The leveling machine ingeniously exploits this physical property: as the sheet passes through the alternating upper and lower leveling rolls, it undergoes repeated bending in both the forward and reverse directions. From the entry to the exit, the degree of bending gradually decreases; residual stresses within the sheet are continuously released during this process, and various initial curvatures are progressively unified into a single curvature, ultimately achieving overall flattening.
From a process perspective, the roller leveling process can be broken down into three stages:
Inlet High Bending: As the sheet enters the leveling machine, the leveling rolls apply significant alternating bending, fully triggering the Bauschinger effect and initiating the release of internal stresses.
Intermediate Decreasing Transition: As the sheet advances toward the exit, the amount of bending at each roller station gradually decreases, and the curvature differences across various regions of the sheet continuously converge.
Exit Fine-Tuning and Precision Leveling: Upon reaching the exit end, the amount of bending is already extremely small, and only fine adjustments are made to bring the sheet to the target flatness.
It is important to emphasize that the essence of this process is to eliminate internal stresses in the sheet and achieve flatness, rather than simply mechanically flattening it. This is precisely why the leveling machine is capable of handling difficult-to-level materials with “strong memory properties,” such as high-strength steel and titanium alloys—it relies on repeated bending to guide the material’s own release of internal stresses, rather than forcibly flattening it with brute force.
II. Structural Classification of Leveling Machines: Two-High, Four-High, and Six-High
The leveling accuracy of a leveling machine depends largely on the arrangement and support method of the roller train. Based on the number of layers in the leveling roller configuration, roller-type leveling machines are primarily divided into three structural types, each with its own emphasis on accuracy levels and applicable scenarios.
1. Two-Stage Structure
The two-stage structure is the most basic configuration of a leveling machine’s roller system, consisting solely of two rows of leveling rollers—one above and one below—with no auxiliary supports in between. Its advantages lie in its simple structure and low manufacturing cost; however, due to the large span of the leveling rolls, they are prone to deflection under load, and the ability to control the roll-to-roll clearance is limited, resulting in relatively average leveling accuracy. It is typically suitable for basic sheet metal processing applications where flatness requirements are not particularly high.

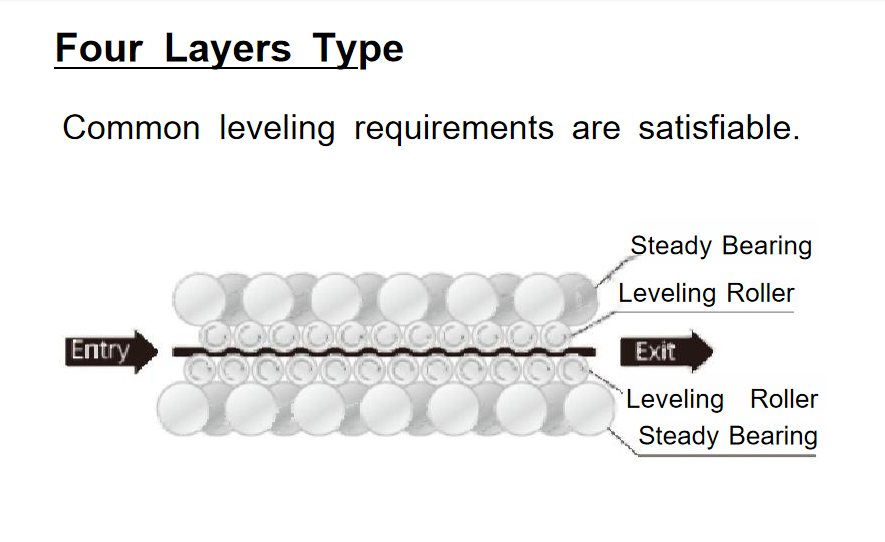

2. Quadruple Structure
The quadruple structure adds a row of support rolls on the outer side of both the upper and lower leveling rolls, forming a dual-layer configuration of “leveling rolls + support rolls.” The primary function of the support rolls is to provide rigid support for the leveling rolls, effectively suppressing their deflection under leveling forces, significantly reducing the roll-to-roll clearance, ensuring more uniform force distribution across the sheet metal, and markedly improving leveling accuracy. Currently, most industrial-grade leveling machines adopt the four-roll configuration, making it a cost-effective choice that balances precision and cost.

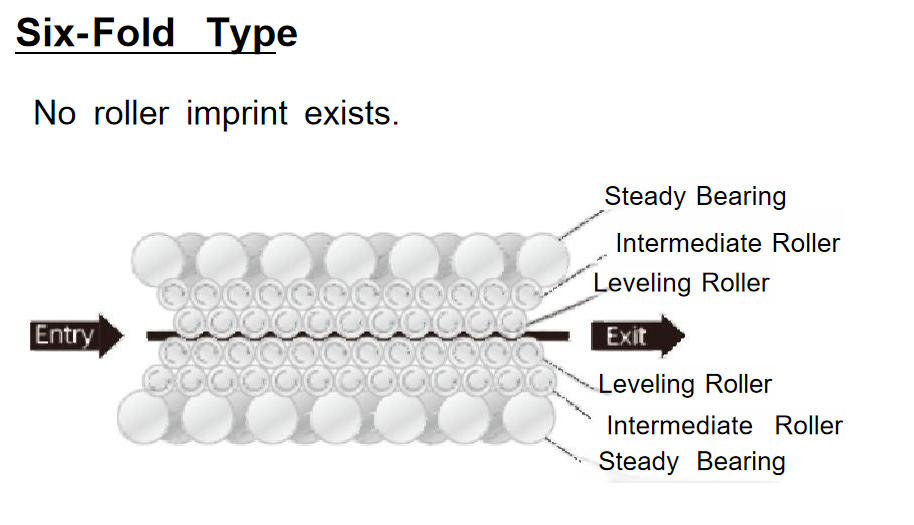

3. Six-Roll Configuration
The six-roll configuration builds upon the four-roll configuration by adding an intermediate roll, forming a composite roll train consisting of “an intermediate roll + upper and lower leveling rolls + upper and lower support rolls.” The addition of the intermediate roll ensures the incompressibility of the entire roll train, minimizing the clearance between the leveling rolls to an extremely low level. This provides the sheet metal with a more uniform and stable pressure distribution during the leveling process, achieving the highest level of leveling precision. The six-roll configuration is currently the top-tier setup in the field of precision leveling and is widely used in manufacturing scenarios with extremely stringent flatness requirements, such as aircraft skins, precision electronic fixtures, and automotive high-strength steel components.
Principles for Selecting a Structure
The higher the number of roll sets, the smaller the gap between the leveling rolls, the more uniform the force applied to the sheet, and the higher the leveling accuracy. Four-roll and six-roll structures fundamentally resolve the issue of gaps between the upper and lower leveling rolls and are currently the mainstream solutions for precision leveling. When selecting a model, the appropriate structure type should be chosen based on material properties, sheet thickness range, and flatness requirements.
III. Application Areas of Leveling Machines
Leveling machines have an extremely wide range of applications, covering virtually all industries involved in sheet metal processing. They are critical process equipment for ensuring processing accuracy and finished product quality.
Leveling Before Laser Cutting: During the laser cutting process, sheet metal undergoes thermal deformation due to localized high temperatures. If the sheet is not sufficiently leveled before cutting, this deformation will accumulate and amplify after cutting, severely affecting cutting accuracy. Leveling the sheet before cutting can effectively reduce the scrap rate and improve material utilization.
Flattening of Raw Sheet Metal Before Stamping: If the flatness of raw sheet metal does not meet standards, it can lead to positioning errors during stamping and uneven forming, increasing debugging costs and affecting the stability of product quality. Leveling machines eliminate the precision bottleneck in the pre-stamping process, providing a reliable flat reference surface for subsequent forming operations.
Automotive Manufacturing and New Energy: Core components in new energy vehicles, such as battery housings and subframes, have extremely stringent flatness tolerance requirements. High-precision leveling equipment is an essential step in ensuring consistent component machining and assembly accuracy.
IV. Key Considerations for Selecting a Leveling Machine
To select the appropriate leveling machine, it is necessary to comprehensively evaluate the following seven key parameters based on material properties and process requirements:
1. Material Thickness Range: Leveling machines are suitable for thicknesses ranging from 0.5 mm (ultra-thin sheets) to 60 mm (ultra-thick sheets). For thin sheets, a configuration with small-diameter rolls and a high number of rolls is required to provide sufficient pass counts; for thick sheets, large-diameter rolls and a smaller number of rolls are needed to withstand higher leveling forces. When selecting a machine, it is essential to specify both the commonly used thicknesses and the maximum thickness.
2. Material width: The equipment’s processing width ranges from 200 mm to over 2,100 mm. Selection should be based on the actual sheet width, and it is recommended to allow for an appropriate margin to accommodate potential future expansion of specifications.
3. Material type and yield strength: Different materials (such as carbon steel, stainless steel, aluminum sheet, high-strength steel, and titanium alloys) exhibit significant differences in yield strength, which directly affects the required leveling pressure. Materials with high yield strengths, such as high-strength steel and high-manganese steel, require equipment with higher leveling force to ensure effective leveling.
4. Precision Requirements: Flatness requirements for general sheet metal processing are typically around 0.5 mm/m², while precision manufacturing sectors (such as aerospace and precision electronics) may require 0.1 mm/m² or even higher. High-precision requirements necessitate the use of six-roll or CNC servo-hydraulic leveling machines.
5. Number of Rolls: The greater the number of rolls, the more times the sheet metal undergoes repeated bending, resulting in better leveling results. However, an increase in the number of rolls also leads to an increase in the minimum processable workpiece length.
6. Level of Automation: Basic models rely on manual adjustment of the leveling gap, with operation dependent on experience; CNC models allow for automatic setting and storage of process parameters, improving consistency; servo-hydraulic models offer higher stability and dynamic response accuracy. The appropriate choice should be made based on production batch size and operator skill level.
7. Minimum Workpiece Length: Due to limitations imposed by roller diameter and roller spacing, leveling machines have specific requirements regarding the minimum length of sheet metal that can be processed. When processing short, small parts, it is essential to carefully verify this parameter to avoid situations where processing is impossible due to equipment limitations.
Aerospace: The flatness of large aluminum alloy sheets, such as aircraft skin panels, directly affects aerodynamic performance and flight safety. The six-roll precision leveling machine, with its exceptional control over roll-to-roll clearance, has become an indispensable key processing equipment in this field.
Telecommunications Equipment Cabinets: Perforated panels for data cabinets are prone to thermal deformation and residual stress after laser cutting and stamping. Leveling machines can effectively eliminate this stress, ensuring that subsequent bending operations do not cause springback and safeguarding the overall structural accuracy and aesthetic quality of the cabinets.
Non-ferrous Metal Smelting: After leveling treatment, industrial consumables such as stainless steel electrolytic plates regain flatness to a level that meets reuse standards, enabling recycling and significantly reducing procurement costs for consumables.
